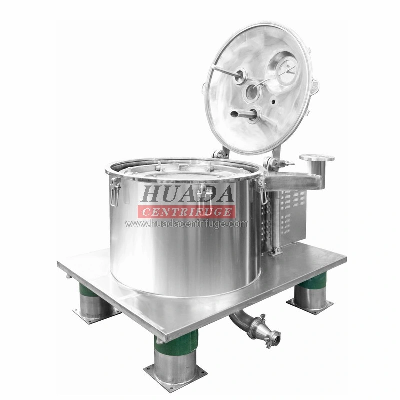

PSD Bag Lifting Top Discharge Food Centrifuge

PSD Bag Lifting Top Discharge Food CentrifugePlatform Bag Lifting Top DischargeCentrifuge                _______________________________________________________________________________             Product Description Manual Top Discharge Centrifuge in Production Video:http://huada-centrifuge.en.made-in-china.com        Once the materials to be separated enter the fast-spinning basket, it will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket. Once the solid cake reaches the rate capacity, feeding stops. Wash the solids cake, and then drain out the washing water. Finally stop the machine. Use the lifting tool or crane to lift out the filter cloth with solid cake, and move to the discharging place. Open the filter cloth and discharge the solid cake. Put the filter cloth back to the centrifuge and move to next batch. Main applications     Apply to separating material with granulate particle shape, but also fibers, like plasters, bluestone, potassium chloride, borax, dyestuffs, pesticides, salts, gourmet powders, foodstuff additives, chemical flavors, antibiotics, vitamins, the metals like copper, zinc and aluminum, metal products, sludge, etc. Diagram   Main features 1,Inverter start-up, smooth starting, adjustable relative centrifugal force.2,Discharge cake by lifting out filter cloth is highly efficient with low labour intensity; No damage to the particles; Wide range of applications.3,Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.4,Overall welding structure between the base and the case ensures high carrying strength. 5,Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform. 6,Liquid-damping vibration isolators, simplify the routine maintenance.7,Big hinged cover, feed pipe, wash pipe, observation glass and light.8,Automatic CIP system cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.9,Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system(optional)is for anti-explosion applied to poisonous, flammable and explosive environment.10,Equipped with hydraulic suspension arms with external fully-stainless steel surface (optional), which is easy for discharging and complies with the sanitation requirements. Parameters Items Models PSD800 PSD1000 PSD1200 PSD1250 PSD1500 PSD1600 PSD1800 Basket Dia (mm) 800 1000 1200 1250 1500 1600 1800 Basket Volume (L) 120 200 330 400 600 800 910 Max. Load (kg) 150 250 410 500 800 1000 1100 Max. Rotating speed (r/min) 1200/1500 1100/1200 960/1050 1000/1200 850 850 780 Centrifuge Force 645/1006 680/806 670/968 700/1008 607 647 612 Motor (kW) 7.5 11 18.5 18.5/22 30 37 37 Dimension (L*W*H) (mm) 1720*1200*1300 2000*1400*1500 2550*1800*1780 2550*1800*1780 2600*2300*1800 3200*2400*2150 3300*2600*2100 Weight (kg) 1500 2500 3800 4000 6000 8500 10000 Production site                                                                                                                                                               /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
