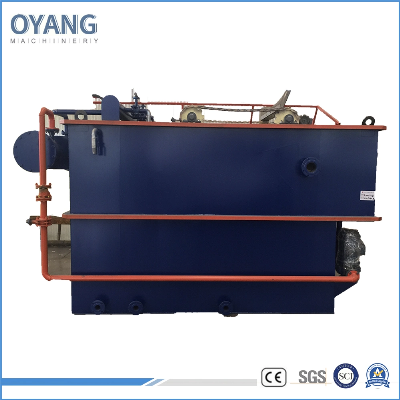

Oily Sewage Separation Treatment Dissolved Air Flotation Equipment for Daf Wastewater

 Product DescriptionDissolved air flotation is suitable for the treatment of small and mediium-sized industrial wastewater and urban comprehensive sewage.It is used to remove suspended solids,grease and various colloids in sewage.It can also recycle useful substances.Dissolved air flotation can effectively remove SS,and CODcr. Detailed PhotosProduct AdvantageLarge capacity,high efficency and small footprint.Simple structure,easy to use and maintain.Sludge bulking can be eliminated.Remove surfactants and odors in water,increse dissolved oxygen in water,provide favorable conditions for subsquent treatment.Good effect on low temperature,low turbidity and algae water.   Working principlePollutants in sewage can be divided into soluble organic matter and insoluble substance (SS). Under certain conditions, soluble organic matter can be transformed into non-soluble substance. One of the methods of sewage treatment is to add coagulants and flocculants so that most of the soluble organic matter can be transferred into insoluble substance. Then all or most of the non-solution soluble substances (SS) are removed to achieve the purpose of sewage purification, and the main method of SS removal is to use the method of air flotation.After the dosing reaction, the sewage enters the mixing zone of the air float and mixes with the dissolved air water after release. The air dissolved in the water is released from the water and forms 20-40um tiny bubbles, which makes the flocculant adhere to the tiny bubbles and then enters the air float zone. Under the action of air buoyancy, the flocs float to the water surface and form scum. After the lower level of clean water flows to the clear pool through the water collector, part of the water flows back to be used as dissolved gas, and the rest of the clean water flows out through the overflow port. After the scum on the surface of the air float tank accumulates to a certain thickness, the scum is scraped into the air float sludge tank by the scraper and discharged.Product Parameters ModelCapacity(m3/h)Dissolved gas water (m3/h)Main dynamo powder (kw)Foam scraper power (kw)Air compressor power (kw)Air compressor model no.Fresh water pump typeDissolived air tank size(mm)Overall dimension(mm)GSRF-54-51.5-230.751.5v-0.1/811/2G25-1Φ400*10002800*2100*2200GSRF-108-102-330.751.5v-0.14/711/2GC-5*2Φ500*15123700*2100*2200GSRF-1510-163-430.751.5v-0.14/711/2GC-5*2Φ500*15124500*2400*2300GSRF-2015-205-77.51.11.5v-0.14/72GC-5*2Φ500*15124650*2400*2300GSRF-3020-306-107.51.11.5v-0.14/721/2GC-5*2Φ500*15125840*2700*2300GSRF-4030-408-137.51.11.5v-0.14/721/2GC-6*2Φ600*18806800*2700*2300GSRF-5040-5015-207.51.52.2v-0.14/7IS65-40-200Φ600*18807500*2900*2300GSRF-6050-6018-277.51.52.2v-0.14/7IS65-40-200Φ600*18808500*2900*2300GSRF-8070-8024-327.51.52.2v-0.14/7IS80-65-160Φ650*23049300*3520*2300GSRF-10590-10530-35151.53v-0.36/7IS80-50-200Φ700*198011750*4400*2300GSRF-150125-15060-80222.23v-0.36/7IS150-80-400Φ800*198012100*5600*2300GSRF-200175-20080-1002234v-0.36/7IS150-80-400Φ800*210012400*7600*2860GSRF-250225-250100-1202234v-0.36/7IS150-80-400Φ800*240014700*7600*2860GSRF-300280-300120-1803735.5v-0.67/7IS150-125-400BΦ1000*290019100*7600*3150  Company ProfileQingdao Oyang Machinery Equipment Co., Ltd. is established in Qingdao High-tech Zone. It is an engineering technology enterprise with a professional R&D team and rich experience in pollution control. By using the Internet and advanced detection technology, the company integrates design, construction, engineering, operation and management with the development of smart city, realizes the informatization and digitalization of pollution control, and forms a complete set of waste gas and wastewater treatment system and environmental housekeeping management system. The company's main products: Integrated sewage treatment equipment, domestic sewage treatment equipment, buried sewage treatment equipment, air flotation machine, industrial sewage treatment equipment, belt filter press, sludge dewatering machine, vacuum filter, rural sewage treatment equipment, Hospital sewage treatment equipment, slaughter sewage treatment equipment, coal mine sewage treatment equipment and other environmental protection equipment. Products are widely used in domestic industrial and mining enterprises, living quarters, urban and rural areas, food, petrochemical, papermaking, breeding and slaughtering, leather, textile, printing and dyeing, hospitals, hotels and other fields. Corner of workshop CertificationsFAQ1: Are you trading company or manufacturer?We are manufacturer, specializes in producing waste water treatment equipments for more than 10 years.2.This is my first time to import, i do not know the process, how should i do?Don't worry about that, we'll help you deal with the whole process.We have different country shipping agent, if you are the first time to import, they will be professional and give you thebest price and deal with everything of transport. They will supply custom clea
