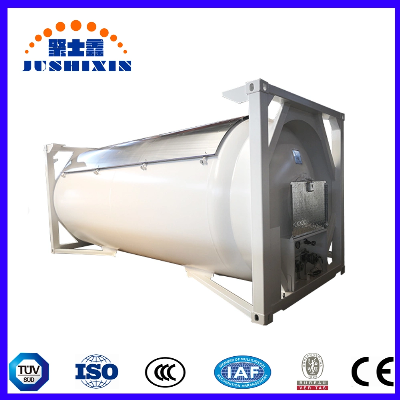

Low Pressure LOX/LIN/LAR/LCO2 / LNG/LC2H4 T75 ISOTankContainerCodes and regulationsRID/ADR, IMDG, ASME VIII DIV 1-2017Ed;T75 UN PORTABLE TANK TIR;UIC;CSC;TC;FRA;CFR49;ISO 1496/3;ISO Standard 1161Guidelines for tank containerT75 UN Portable TankISO Size and type code42K7Maximum Allowed Loading Weight17510kgsTare Weight11700kgsAllowed stacking weight192000kgsManufacturing license levelInside tankC3 outside tank Max. Working Pressure(Mpa.)Inside tank(MPa)0.75 outside tank(MPa)-0.1(Vacuum)Min. Working TempretruesInside tank-196°C outside tank-40°CDesign Pressure(Mpa.)Inside tank0.8 outside tank-0.103Design TempretruesInside tank-196 °C outside tank50 °CThe Main materialCoverinside tankSA-240M 304 outside tankQ345R Shellinside tankSA-240M 304 outside tankQ345R Frame workHollow SectionQ345-D--GB/T1591 PlatesQ345-D--GB/T1591 Rolled sectionQ345-D--GB/T1591Overall Size(Frame)/L*W*H/mm12192*2438*2591MediaInside tankLNGMedia CharacteristicsInside tankexplosivePaintFrame30µm +40µm +50µm Shell30µm +40µm +50µmTotal Volume(L)45700Type Of InsulationHigh Vacuum Multi-layer InsulationMaterialAluminium FoilProvision for BafflesFive sets of surge baffles shall be installed.Corrosion allowanceInside tank0mm outside tank0mmNominal thicknessShellInside tank6mm outside tank4.0mm HeadInside tank8mm outside tank6.0mmAir pressure test pressureInside tank(MPa)1.17FittingsAll fittings, including valves and pipe sections shall be cleaned and then fitted to the tank.Welding joint coefficientInside tank1 outside tank0.85Leakage Test and Nitrogen PurgeAfter cleaning, all valves, blind flanges, caps and connected piping are installed and a leak test is performed at16.2 bar using clean and dry air. The vessel will be delivered in a Nitrogen purged condition. Nitrogen will be used (O2 < 0.5% residual oxygen, 0.5 bar pressure).Main hazard category2.1Design service life20 yearsMode of transportationRoad,Sea,RailwaySafety valveQuantityTwo Set Pressure+8barLiquid Level gaugeGrade2.5 QuantityOne Measuring range(Kpa)0~2.0M H2OLoading and unloading deviceGas phase jointTypeFlange connection Nominal DiameterDN50 liquid phase jointTypeFlange connection Nominal DiameterDN50Pressure gaugeQuantityOne Measuring range(Mpa)0~1.6 Precision1.6 Class1. Inner layer - made of 6 or 8 mm thick Q235-B steel plate, compared with ordinary 5 mm thick single-layer tank, the strength is greatly improved;2. Outer layer - tempered glass fiber thickness of 4.0mm or more, good compressive and seismic resistance. It has strong corrosion resistance and corrosion resistance;3.Unique technology is adopted between the inner and outer layers to make it reach a gap of 0.1-1mm, so as to eliminate hidden dangers from the root;4. Leak detector 24 hours to monitor, to prevent leakage caused by security risks;5. Widely used for storage and transportation in dairy, beverage, wine technology, with function of anti-seismic, anti-explosion, leakage-proof and cooling.Detailed photos for the Tank container:Factory Workshop:3.More Styles for the ISO tanker container:4.Design proposal for the 20feet ISO tank container:---Net capacity: not less than 20cubic; Shell of tank container Materials using Wisco Q235 High quality carbon steel 6mm baffle;---Two feed inlets,bigger manhole covers, 2 NOS. pressure vent valves( breather valve) , at the end of the bottom , DN80 dump valve(discharge valve). Screw of Openings and valves adopt stainless steel screws, single coaming board on the top of tank Molybdenum red reflective tape;---Framework is made of High quality steel, each one ladder at back and forth. With two acid resistant tube, two 4kg fire extinguishers.5.Optional parts for the tanker container:Volume: 20 cube meters to 52 cube metersMaterial: Carbon steel/aluminum/stainless steel materialMedidum:HYDROFLUDRIC ACID HCI 32%,CAUSTIC SODA NaOH 32%,NaCl. NaClO etc. Chemical Liquid.6.BRIEF INTRODUCTION TO OUR FACTORY:Henan Jushixin Transportation Equipment Co.Ltd is the professional manufacturer of ISO tank container,such as standard liquid tanks, electrical heating tanks, reefer tanks, food grade tanks, baffle tanks, swap tanks, gas tanks, H2O2 tanks, AHF tanks, bitumen tanks, different types of lining tanks, etc, and 10ft tanks, offshore tanks, IBC/SBC ,etc , with high standard machinery and automatic equipment, powerful R&D team and elite sales team, we have built a long business relationship with many world famous enterprises.pls contact us if any interset.7.FlEXIBLE SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY:>>>Offering the one-stop full lifecycle services;>>>Our vehicle users will receive 24-hour uninterruptible "Entire Journey" service;>>>CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise;>>> Small Order Can Be Accepted;>>>Any Color & Logo Available;>>>The Product Dimension + Specifications Can Be Designed As Your Needs.8.Buying Guides**You please send us your enquiry;**We shall reply you with the quotation within 12 hours;**We negotiate on the configurati
