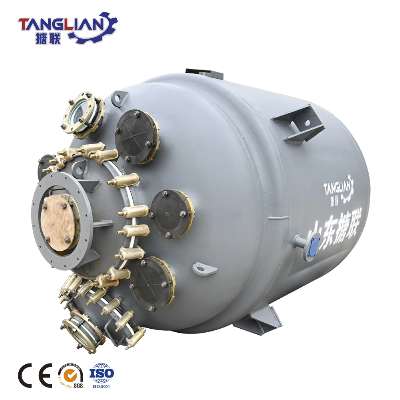

Enamel Mixing Reactor Pressure Vessel

Main technical parameter INNER VESSELJACKETMATERIALCarbon Steel with Glass LinningCarbon SteelDESIGN PRESSURE(Mpa)-0.1 / 60 / 0.6DESIGN TEMPERATURE(ºC)-19 / 200-19 / 200WORKING TEMPERATURE(ºC)-19 / 200GLASS LINED THICKNESS(mm)0.8-2.0HIGH VOLTAGE(Kv)20RESISTANCE TO SHARP TEMPERATURE VARIATION(ºC)COOL SHOCK 110,HOT SHOCK 120Glass lining equipment features:1. Design temperature: agitating reactor temperature 0ºC to 200ºC, storage tank use temperature 0ºC to 150ºC, equipment resistance to heat-cooling thermol shock. Cold shock: 110ºC; Heating shock: 120 ºC. Glass-lined equipment heating and cooling should be carried out slowly.2. Glass lined layer thickness: glass lined equipment glass layer thickness in 0.8-2.0mm; glass lined equipment accessories glass layer thickness in 0.6-2.3mm.3. Spark test: The glass lining layer is spark tested at the 20KV high voltage because of electric insulation, if the working surface has no spark flash on the high voltage, the surface is qualified without glass lining leakage.4. corrosion resistance: can resist various concentrations of inorganic acids, organic acids, organic solution and weak alkali corrosion (media containing fluorine ions, concentration ≥ 30%, temperature ≥ 180ºC except concentrated phosphoric acid and strong alkali).5, Non scale: The glossy and clean glass lining surface avoid material bonding and scale, it's really suitable for using on foodstuff industry.  ·Products can be customized to meet customers' needs in the aspects of structural design, function, capacity, and various working conditions ,etc. ·A series of examinations will be taken before the final fabrication of the product are ready to put into batch production, inspection can be made any time before the final fabrication is ready. ·We will provide instant service from the design drawings to after sales constantly upon the feedback from users. ·The desgin department provide professional drawings for evaluating feasibility and practicability in the perspective of users.  Shandong Tanglian was established in 1998 and is located in Zibo, the hometown of glass lining in China. It is a well-known chemical equipment manufacturer in northern China, specializing in the production of glass-lined reactors, stainless steel reactors, carbon steel reactors and PTFE sparied, PP lining, alloy composite reactor, agitator, storage tank, heat exchanger, shell and tube condenser, tower, film evaporator, vacuum rotary dryer, high pressure laboratory reactor, full-set chemical automatic equipment .The products produced by our company are supplied to the whole country and dozens of countries around the world , and are widely used in petroleum, chemical, pharmaceutical, dye, mining and metallurgy and other fields. The supply objects include enterprises (Qilu Pharmaceuticals, China Wanda, etc.), scientific research institutes (Qingdao Research Institute of Chinese Academy of Sciences, China Sinochem Research Institute, etc.), institutions of higher learning (Harbin Institute of Technology, Dalian Maritime University, etc.), etc./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
