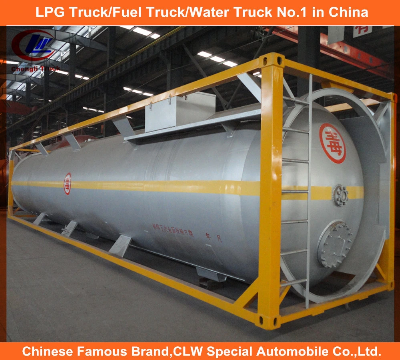

40′ LPG Gas Transport for 40feet LPG ISO Tank Container

The images of  20ft and 40ft LPG Tanker LPG tank container brief detail:1)Designing pressure:0.7~2.16Mpa  Designing temperature:500C2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency. 3)We inspect the quality of product strictly,ensure that A and Btype of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.4)There are domestic or imported safety accessories with high quality ,its matching is complete. 5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting ,purging and so on China Famous 20 feet or 40 feet the LPG tank container ItemDescriptionSpecificationRemarks1ShapeCylinder20ft2Gross capacity(m3)  Effective capacity(m3) 95% filled3Outline dimension(mm)6058x2438x2591 Internal Diameter(mm)23004Tare weight(kg)5000 5Insulation layer(mm)50 6 The temperature down rate of the tank(°C/h)≤2 7Seal off the head(mm)6 8Direct visual temperature meter1 9Temperature sensor1 10Maintenance manhole1Ø500 mm11The feeding hole of the asphalt1Ø250 mm12The protect frame of the feeding hole of the asphaltone,800*750*200 mmoverflowing cofferdam13Breather valve1 14Pressure(MPa)Less than 0.1 15Asphalt Discharge valve14″16Fast coupling14″17Temperature1-19°C~200°C18 Ladder1W=400mm19Heating systemOne set, hot pipe direct heating, twin burner tubes2 Groups20Diesel oil burner2, 40x104KcalOptional21Automatic control systemOptional PurposeTank containers series mainly used for transportation and storage of chemical liquid productsand oil products, because it can be stack up placced, so that, widely used in ware house, and other industries. AdvantagesLight self-weight, easy to clean, covering a wide range of goods, accessing to reliable, long life and easy maintenance characteristicsOthersWe produced the tank containers in accordance with the ISO standard design, in line with international maritime standards. Tank material according to different transportation medium can choose carbon steel, stainless steel, and insulationand non-insulation tank.Chengli Special Automobile Co., Ltd 1. We are a group company with one years quality guarantee. 2. We have advanced technology and equipments, mature experience. 3. We are leading manufacturer in China, the price of our trucks are competitive. 4. We have modern management system, the delivery time are on time. 5. We exports many trucks over the world. We have professional sales team. If you are interested in our trucks, pls contact me, I will  send our best quotation to you.Mr John SuSales DirectorChengli Special Automobile Co., LtdFactory: Chengli Automobile Industry Park,Suizhou, Hubei, ChinaOffice: Block 2,Fengzeyuan Villa,Dongxihu District,Wuhan, ChinaTel&Fax: +86-27-83796298  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
