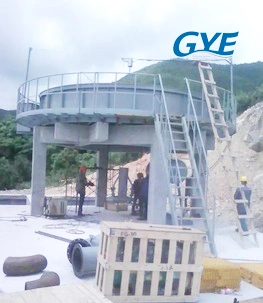

Water Treatment Plant Shallow Circular Dissolved Air Flotation Solid-Liquid Separation Equipment

Product DescriptionLiquid-solid separation technology and the related equipment are the essential factor to drainage treatment process. Dissolved air flotation is the most effective method for removing the tiny pollutants from the waste water.Working TheorySuperficial DAF System, also called cirlar shallow DAF system. It's the main treatment device in water purification system. It mainly used for remove SS--suspended solids and reduce the COD in the waste water.Superficial DAF designed according to Zero Speed Principle and Shallow Pool Theory. First of all, the depth of the tank is just 750-950mm. The influence from the equalization tank is pumped into the circular DAF tank after coagulation and flocculation. The rotating system with distributor, scum skimmer and collecting pipes is driven for anti-clockwise rotation while the influence comes at clockwise direction. In this way, the water speed in the tank is zero relatively. The micro bubbles generated by GFA dissolved air system would mix the flocculation and float onto the surface. The depth of the tank is just 750-950mm, which can separate liquid and solids effectively. The scum is scrapped by the rotating skimmer into the central scum slot and falls down the sludge tank downstairs. The clean water is collected and flow into the clean tank. Electric cabinet control all the elements and it just take 3-5 minutes to purify the waste water. Technical Data Sheet  ModelTank Diameter(m)Capacity(m3/h)Drive motor(kw)Skimmer(kw)Pump (kw)Air compressor(kw)Total power(kw)GQF-10Φ25~100.750.751.50.754.45GQF-30Φ320~301.10.7530.755.6GQF-50Φ440~501.11.17.51.511.2GQF-70Φ560~701.51.1112.215.8GQF-100Φ680~1001.51.1152.219.8GQF-150Φ7120~1501.51.1152.219.8GQF-200Φ8180~2002.21.522429.7GQF-250Φ9220~2502.21.522429.7GQF-300Φ10280~3002.21.5305.539.2GQF-400Φ11350~4002.21.5305.539.2GQF-500Φ12450~50032.2457.557.7GQF-600Φ13550~60032.2457.557.7GQF-700Φ14650~70032.2557.567.7GQF-800Φ15750~80032.2751191.2Capacity30-800M3/HRe-flux ratio30%Cell depth700-900MMDissolved water press≥0.4MPAEffective depth600-750MMSpeed1/5~1/10RPMHRT5-10 MINWater surface6~8 M3/M3.HApplicationDAF System, as one waste water treatment process, it is widely used in sewage purification engineering. It can be used for these industries:1. Paper industry -- pulp recycle in white water and clean water recycled for use.2. Textile, printing and dyeing industry -- color chromaticity reduction and SS removal3. Slaughterhouse and food industry4. Petro-chemical industry -- oil-water separation/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
