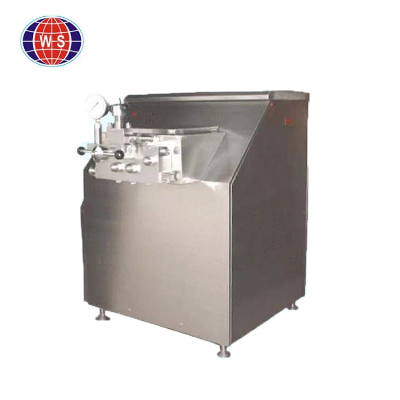

High Efficiency Low Energy Consumption High Pressure Homogenizer

  A. power end   motor: Siemens Bede Motor Co., Ltd.Drive: two-stage variable speed; one-stage belt pulley, two-stage crank gear symmetrical transmission; special alloy bearing bush, double-sided rolling bearing, horizontal stability, low noise, and mechanical efficiency increased by about 10% on average.Lubrication: splash type automatic lubrication and oil B.Hydraulic endThe main pump body: three types, the gland adopts radial self-sealing, durable, no leakage.Plunger: 3 plungers, durable, safe and easy to disassemble. Square plunger seal assembly, code X4310.(Replacement of seal does not require unloading of pump body)One-way valve: 3 sets of cone valve in and out, 6 sets in total. Durable and reliable, ensure flow rate ≥ rated flow value.model3000-25mpa(50Hz)rated flow rate 50Hz power3000l/h()max work pressure(test pressure)25MParated work pressure≤20MPamaterial in pressure0.2-0.3MPa/Liquid temperature / viscosity100ºC/≤1000CPrated motor pwoer22KWInterface diametermaterial in - out tube fittingRD70*1/6"size1.35*0.94*1.24mweight1200KGlubricate oilN68or Mobil  SHC626/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
