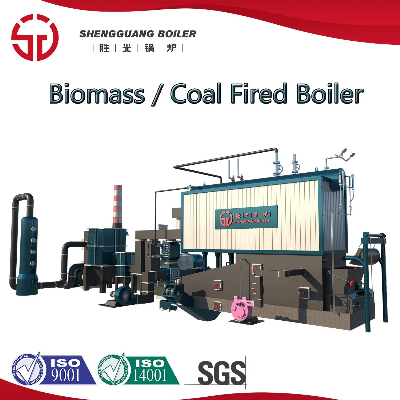

6ton/Hr Automatic Feeding Low Pressure Coal Boiler

6ton/hr Automatic feeding Low Pressure Coal Boiler       Rated capacity :1-20ton/hrDesign pressure :1.0Mpa (10bar/10kg/145psi)                                     1.25Mpa(13bar/13kg/180psi)                                      1.6Mpa(16bar/16kg/232psi)Steam temperature: 184ºC  194ºC  204ºC Biomass and coal fired boiler can be divided into single-drum solid fuel boiler and double drum solid fuel boiler according to the boiler structure. We select the different grates to suit for the different fuel characteristics, such as fixed grate, light chain grate , reciprocating grate and other types of grate. Equipped with different auxiliary devices,the boiler has better adaptability to fuels as following :Fuel :Biomass pellets, Biomass briquettes, Wood chip, Sawdust, Bagasse,  Rice husk, Palm fiber and palm shell, Coal pellets, etc.Feeding way Lifting type: Scraper type, Screw type, etc.System diagram of single-drum Biomass and coal fired Boiler1.Boiler Body           2.Electric Control        3.Lifting Feeder          4.Governor           5.Safety Valve        6.Main steam Valve          7. Economizer          8.Water Tank 9.Water Treatment  10.Water Pump       11.Forced Draft Fan   12. Induced Draft Fan   13.Chimney       14.Steam Header             15.Boiler Water Sampler 16.Drainage Expansion Container  17.Air Preheater   18.Multi-tube Dust collector 19.Bag-type Filter  20.Thermal Deaerator 21.Desulfurization and Denitration Equipment System diagram of double-drum Biomass and coal fired Boiler1.Boiler Body     2.Electric Control     3.Lifting Feeder     4.Governor      5.Safety Valve      6.Main steam Valve      7. Economizer     8.Water Tank      9.Water Treatment 10.Water Pump      11.Forced Draft Fan      12. Induced Draft Fan     13.Chimney     14.Steam Header      15.Boiler Water Sampler     16.Drainage Expansion Container 17.Air Preheater     18.Multi-tube Dust collector       19.Bag-type Filter     20.Thermal Deaerator       21.Desulfurization and Denitration Equipment      22.Ash Pipe            PRODUCT FEATURES:Reasonable structure, high thermal efficiency and fuel saving.                                                                                                                              1.New technologies such as the high-efficiency heat transfer thread pipe and arched tube sheet bring a higher thermal efficiency and make the boiler safer and more reliable. 2.The boiler adopts optimized furnace structure ensuring strong radiation,stable combustion, quick heating and good effect. Advanced performance with long service life1.The main welds are all automatically welded with no return repair record. 2.The tube plate adopts advanced pressing technology to make sure the life of boiler. Top facilities1.The burning equipment adopts grates according to the fuel, and the governor adopts frequency conversion speed regulation to adjust conveniently and run stably, so as to be better suitable for poor quality fuel. 2.It adopts internal separation of soot in the furnace,supplemented with high-efficiency multi-tube dust collector or bag dust removal equipment. Fully automatic electric control system, complete monitoring instruments, provide a strong guarantee for automatic water supply,over pressure and over temperature alarm, advanced remote control function, online usage monitoring, fault alarm and other functions. Technical ParametersSingle-drum Biomass and coal fired BoilerRated evaporation capacity (t/h)12346Rated working pressure (Mpa)0.7/1.0/1.250.7/1.0/1.250.7/1.251.251.25Rated steam temperature(ºC)170/184/194170/184/194170/194194194Water-supply temperature(ºC)2020202020        Heating area(m2)Radiation5.76.95/12.648.5/9.510.06/11.912.1/12.5Convection19.39/20.536.59/38.642/50.662.87/81.695.9/101.6Economizer18.4852.3252.3269.76104.64Thermal efficiency (%)81/8681/8681/8681/8682/87Combustion ModeGrate-fired FurnaceFuel availableFuel type(designed):AII Bituminous coal /Biomass pelletOther Biomass fuel such as Biomass straw/palm silk /rice husk /bagasse need to consult with our company seperately.Low heating value (KJ/Kg) :18900/16750  (4.186KJ/Kg=1Kcal/Kg)Fuel consumption (kg/h)193/209387/398445/531781/7781165/1175 Effective area of grate(m2)1.95/1.82.7/2.84.18/3.345.149.36/8.12Diameter of main steam outlet(mm)DN65DN80DN80DN100DN125 Maximum Dimension for transportation L×W×H(mm)4700x2040x29005290×2330×32505530×2470×32006200×2850×35506500×3350×3550/4920x2040x2900/5290×2330×3400/5530×2600×3500/6500×2900×3550/7330×3350×3600Maximum weight for transportation(ton)12/1417.5/18.52327/2932Remark:1.Due to the continuous technical development, the technical parameters can be changed without warning. The technical parameters are subject to the drawings.2.Electric power: 380V-440V, 50Hz/60Hz.3.For 8-20ton/hr boiler technical parameters, I will email you when you send us an inquiry.Double-drum Biomass and coal fired BoilerRated evaporation capacity(t/h)68101520Rated working pressure(Mpa)1.25/1.61.25/1.61.25/1.61.25/1.
