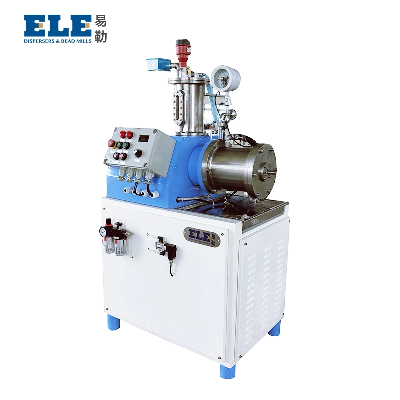

Ultra Grinding Mill Horizontal Bead Mill for Ink Production

ELE Mechanical & Electrical Equipment Limited Pin type horizontal pellet mill for pigment cosmetical grinding mill Model: EDW Series Chamber volume:5/10/15/30/50/100L Introduction: ELE horizontal pearl mill cooperates with Switzerland technology, with advanced structure, high efficiency, nanometer and micron final fitness.  It is widely used in the industry production of paint,color paste,printing ink,papermaking,adhesive,drugs,chemical industry etc. to mix,dissolve,and disperse two or more kinds of liquids and solids. Different types of Bead mill 1) Pin type horizontal bead mill 2) Turbo type horizontal bead mill 3) Disc type horizontal bead mill Features: Reasonable structure makes the horizontal bead mill more stable, easy to operate and maintain. Special design for middle and high viscosity material with ultra-fine requirement. Mechanical Seal ELE adopts double cartridge mechanical seal for bead mill,  can withstand pressure above 10kg. The seal specifically designed for particles in fluid, is one of the most advanced technology in worldwide. Discharging Separation Unique tubular fence type discharging separation structure with small gap and large area, will not stuck beads or leak beads, ensure that the material discharging smoothly meanwhile lessen the impact between beads and sieve, prolong the service life. Regular gap sizes for outlet filter are 0.1mm,0.3mm and 0.5mm, minimum 0.05mm, that allow tiny grinding beads with minimum size 0.2mm can be used. The usage of small medium micro beads can make the materials achieve ultrafine grinding requirement more easily and reliably. Powerful Energy Adopt pin type, the pin at high speed hitting & grinding, giving the medium more powerful kinetic energy, which is the key for material refinement. Large Amount Medium Loaded Can add 85-90% grinding media in chamber, the large proportion accelerate refining efficiency for the material. High Wear Resistant Material For Grinding Chamber Chamber wall and pin rotor adopt Silicon Carbide/ Zirconia/ Steel with high wear resistance, help to get long service life. Silicon Carbide/ Zirconia chamber can avoid the color and metal pollution. Cooling Effectively With cooling system for chamber wall, end cover and special cooling for mechanical seal, adopt large area corrugation structure to get high efficiency. Silicon Carbide chamber wall with excellent heat conductivity, ensure the chamber be cooled down easily, avoid over temperature. Control System Control system be explosion-proof or non-explosion-proof, button control or PLC. Technical Data:   ModelChamber Volume (L)Power(kw)Rotation(rpm)Capacity(L/H)EDW-557.5-11144030-200EDW-151522-301150100-500EDW-303037-45960300-1500EDW-505055-75860500-2500   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
