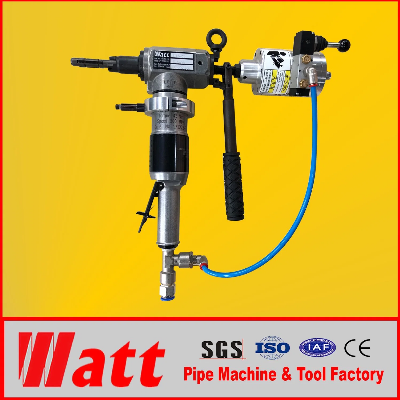

Kt Pneumatic High Speed Pipe Facing Machine

Pipe & Flange ~Cutting ~Beveling ~Facing ~Drilling ~BoringKT PNEUMATIC PIPE FACING MACHINEOVERVIEW KT pneumatic fast beveling machine is designed for bulk small dia. pipes. The machine works by the means of ID mounted, Pneumatic clamping and driving. Manual feeding and Auto feeding both are optional. The machine is used to solve to face, bevel and remove the ending of all welding pipes. With the feature of light weight, easy operation, high efficiency, the machine is widely used for many lines of bulk pipe facing and beveling, eg.heat exchanger, water wall,power plant,pharmacy,brewing, refrigeration and so on. FEATURES1.Cold cutting, without influence the material of the pipes2.ID mounted, fasting positioning clamping3.Manual and auto feeding is optional. 4.Fast feeding and retracting ensure few minutes to facing.5.Remove extra length of the pipe and weld seam, fast face and bevel pipes6.Working range: ID 12mm-40mm. Customized working range requirement is acceptable.7.Applicable to end facing of various grades of metal pipes CS,SS and alloy steelSPECIFICATIONModelKT-24KT-24AKT-48KT-48AFeedingManualAutoManualAutoWorking rangeΦ12.4-24mmΦ12.4-24mmΦ20-48mmΦ20-48mmFeeding stoke20mm20mm20mm20mmMax thickness 5mm5mm5mm5mmNo-load speed300rpm300rpm300rpm300rpmTorque50Nm50Nm50Nm50NmPower1.3HP1.3HP1.3HP1.3HPAir requirement     1500-2000L/min @0.63-0.8Mpa  Machine Max width59mm59mm59mm59mmWeight7KG12KG8KG13KGAbove parameters just for reference only, not acceptance criteria  TOOLINGOther bevel angles and pipe material, please declare before orderOrder GuideBefore you place order to us, please let us know the following information:Choose the right ModelConfirm the beveling angel requiredConfirm the welding joint required (U, V, Double V or Compound preparation)Advise your pipe material ( Carbon steel, stainless steel or others)Other special demands about machineThe spare parts needed Method of operation: 1. Measure the size of the pipe to be machined, select the swelling block according to the swelling block diagram, install it on the wedge block, tighten the bolt, make sure it is secure and loose.2. According to the processing requirements, select the tool table in the appropriate angle of the tool, installed in the machine cutter, tighten the bolt, fixed tool.3. Rotate the feed hand wheel to extend the feed spindle.4. Make the machine tightening mechanism into the tube, the cutter head and pipe surface should be left enough feed space.5. Rotate the hand wheel and adjust the machine position to ensure that the machine feeds the spindle coaxial with the center of the tube. Tighten the nut on the hand wheel with a wrench.6. Start the motor, rotate the feed handwheel, the blade is in contact with the pipe wall, and groove.7. After finishing the machining, first exit the tool, then release the tightening mechanism, remove the machine from the tube.     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
