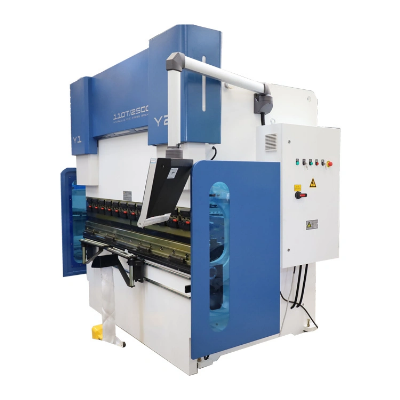

CNC Hydraulic Bending Machine (Press Brake)

CNC Hydraulic Bending Machine (Press Brake)Product DescriptionBending machine is used to bend the cold metal plate into various geometric cross-sectional shapes by using the equipped dies (general or special dies). Electro-hydraulic servo synchronous CNC bending machine is controlled by professional advanced CNC system and equipped with deflection compensation device, which is very simple and convenient to operate and requires little experience for operators. You don't need to set out manually, and you can bend and calculate automatically if you have drawings and input the correct step size. Compared with the torsion axis bending machine, it liberates a lot of manpower and relieves the excessive dependence of bending work on manual experience.Detailed PhotosProduct Parameters NoConfigurationNumerical valueunitRemark1Nominal pressure1350KN 2Foldable plate width3200mm 3Slide stroke200mm 4Maximum opening height420mm 5Column spacing2700mm 6throat depth400mm 7Fast down speed160mm/ s 8Return speed130mm/ s 9Working speed10mm/ s 10Main motor power11Kwservo motor11CNC systemDA53T Netherlands12X-axis travel of rear stopper500mm 13Number of control axes4+ 1 Axis (Y1 ,Y2 ,X ,R+V)14Machine tool accuracySlider repeat accuracy≤±0.01mm 15Slide positioning accuracy≤±0.02mm 16Workpiece straightness0.3  /  mmm 17Bending angle error
