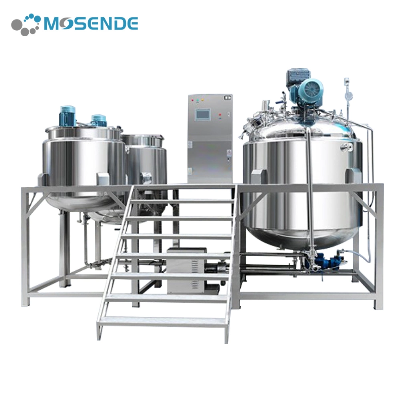

200L Electric Lifting Emulsification Machine Liquid Soap/Gel Homogenizer

200L Electric Lifting Emulsification Machine Liquid Soap/Gel Homogenizer         Industrial emulsifier chemical vacuum blender machine means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distributeone or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic sheraing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be disperesed and emulsifed instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved. Device configuration:200l HomogenizerNameMaterial, name and specificationMain potTotal volume: 260L, working volume: 200L1. inner pot316L stainless steel 2. stir paddle,stir axis316L stainless steel, frame scraping stirring, mechanical seal for reaction kettle3. Mixing motorPower: 4kw, variable frequency speed regulation4. homogenizer316L stainless steel, 2800r / min, high speed mechanical seal5. Homogeneous motorPower 11kw6. jacketStainless steel7. shell304 stainless steel8. lid316L stainless steel, sight glass hole, sight glass light hole, vacuum hole, pressure gauge hole, temperature detection hole, spice adding hole, mixing shaft hole 9. HeatingSteam heating, design pressure 0.2MPa, service pressure ≤ 0.1MPa10. Thermal insulation cottonExpanded perlite  Electric control panelThe box is made of stainless steel, the surface is sand board, manual button control, digital temperature controller, total power is 15kwProcess pipeline and valveStainless steelFrequency converter ReducerCycloidal pin wheel reducerEquipped with one 50L oil bath and one 50L water bathReactor can be customized according to customer requirements  Application area1. Daily Chemical & Cosmetics Industry:    such as baby cream, face cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream, face cleanser, moisture cream, detergent, shampoo etc.; 2. Food Industry:     such as sauce, cheese, chocolate, cake gel, tomato paste etc; 3. Pharmacy Industry:     such as syrup, emulsion, emulsifier, ointment etc.; 4. Chemical Industry:     for chemicals mixing, heating, emulsifying, homgenizing etc. Working principlePrecision fit of rotor and stator, claw structure of working head (rotor and stator forging manufacturing), bidirectional suction, high shear efficiency.The intermittent high shear dispersive emulsifying homogenizer is a high-speed and stable rotation of the rotor to form high-frequency, strong peripheral tangent velocity, angular velocity and other comprehensive kinetic energy Efficiency: under the action of stator, strong and reciprocating hydraulic shear, friction, centrifugal extrusion, liquid flow collision and other comprehensive effects are formed in the reasonably narrow gap between stator and rotor. The materials work in the container repeatedly and above, and finally the products are obtained.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
