ISD ISF SKD HYD Split Frame Pipe Cutting and Beveling Machine

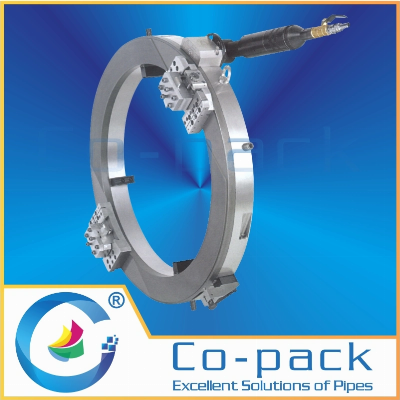

Split Frame Pipe Cutting and Beveling MachineOverviewStandard split frame pipe cutting and beveling machine, designed to cut, bevel, single point, counterbore and face on the pipe, tube and flanges. It is a portable pipe cutting and beveling machine tools of clamshell style. Smartly designed, ability to split in half at the frame, easy to install on the pipe line. It is comprehensive used in pipework of oil, gas, food, petroleum, chemical, boiler, medicine machine, nuclear power, and power supply construction. 16 models are available in 6 inch (152.4mm) increments, with additional sizes available by special order.Features and Advantages16 models, working range for pipe OD 1"-48"Non-standard model can be customizedOut-mounted style, clamping by multipoint jaws.Split frame technology, easy to install on the pipeline.Cold cutting and beveling, don't influence the pipe's material.Auto feed, cutting and beveling at the one time, cost effective.Varity of beveling shape: "U", "V", "Y", J", double "V", compound bevels.Stationary ring is steel; rotation ring is aluminum, and steel optionalElectric, pneumatic, numerical control and hydraulic drive options are available.Several different drive options are available to best position, the motor for a specific machining application.It can be equipped a wide range of accessories to increase performance and expandCapabilityPipe cut offPipe end bevelingPipe facingCutting and bevelingCompound bevelingCounter boringFlange facing GroovingModel and Specification (Standard Split Frame)ModelPipe Capacity ODWall ThicknessRotatingElectricPneumaticNCHydraulicmminchmmrpmISD-90ISF-90SKD-90HYD-90Ф20-90 3/8"-3"30  -34ISD-168ISF-168SKD-168HYD-168Ф25-1681"-6"305024ISD-219ISF-219SKD-219HYD-219Ф50-2192"-8"305023ISD-273ISF-273SKD-273HYD-273Ф114-2734"-10"307523ISD-323ISF-323SKD-323HYD-323Ф168-3236"-12"307523ISD-355ISF-355SKD-355HYD-355  Ф177-3558"-14"3011023ISD-406ISF-406SKD-406HYD-406 Ф254-40610"-16"3011022ISD-457ISF-457SKD-457HYD-457 Ф323-45712"-18"3011020ISD-508ISF-508SKD-508HYD-508Ф355-50814"-20"3011020ISD-559ISF-559SKD-559HYD-559Ф406-55916"-22"3011014ISD-610ISF-610SKD-610HYD-610Ф457-61018"-24"3011014ISD-762ISF-762SKD-762HYD-762Ф610-76224"-30"3011013ISD-914ISF-914SKD-914HYD-914Ф762-91430"-36"3011011ISD-1066ISF-1066SKD-1066HYD-1066Ф914-106636"-42"3011010ISD-1160ISF-1160SKD-1160HYD-1160Ф980-116038"-44"301109ISD-1240ISF-1240SKD-1240HYD-1240Ф1040-124040"-48"301109Above parameters just for reference only, not acceptance criteria.Models and Capacity (Heavy Duty Split Frame)ModelPipe Capacity ODWall ThicknessRotatingElectricPneumaticNC/ElectricHydraulicmminchmmrpmISD-2412HISF-2412HSKD-2412HHYD-2412HФ305-610  12"-24"≤11014ISD-3624HISF-3624HSKD-3624HHYD-3624HФ610-914  24"-36"≤110 11ISD-4836HISF-4836HSKD-4836HHYD-4836HФ914-124036"-48"≤110 9ISD-6048HISF-6048HSKD-6048HHYD-6048HФ1220-1524  48"-60"≤110 5 ISD-7560HISF-7560HSKD-7560HHYD-7560HФ1524-1910  60"-75"≤110 4ISD-9075H ISF-9075HSKD-9075HHYD-9075HФ1910-2290  75"-90"≤110 4 ISD10590HISF-10590HSKD-10590HHYD-10590HФ2290-2680  90"-105"≤110 3 ISD-120105HISF-120105HSKD-120105HHYD-120105HФ2680-3050  105"-120"≤110 2Above parameters just for reference only, not acceptance criteria.Model and Specification (Mini Split Frame)ModelPipe Capacity ODWall ThicknessRotatingElectricPneumaticmminchmmrpmISDS1ISFS1Ф12.5~25.40.5"~1"≤1534ISDS1.5ISFS1.5Ф25.4~38.11"~1.5"≤1524ISDS2ISFS2Ф38.1~50.81.5"~2"≤1523ISDS2.5ISFS2.5Ф50.8~63.52"~2.5"≤1523ISDS3ISFS3Ф63.5~76.22.5"~3"≤1523ISDS3.5ISFS3.5Ф76.2~88.93"~3.5"≤1523ISDS4ISFS4Ф88.9~101.63.5"~4"≤1520ISDS5ISFS5Ф101.6~1274"~5"≤1520ISDS6ISFS6Ф127~152.45"~6"≤1514Above parameters just for reference only, not acceptance criteria.Power SuppliesElectricConvenient power supplyStable performancePopular choiceElectric requirement: 220-240V 1PH 50/60HZPower: 1.43KW, 1.7KW, 2.4KWDouble motor for big model or heavy dutyPneumaticExplosion ProofStable performanceEasy to maintenanceAir requirement: 1500-2000L/min @0.63-0.8MpaPower: 2HP, 3HP, 4HPDouble motor for big model or heavy dutyNCPowerful drive, high efficiencyLow noise, stable performanceIdeal for heavy wall thickness & large size pipeElectric requirement: 230V 1PH 50/60Hz;380V 3PH 50/60HzPower: 2.0KW or 3.0KWDouble motor for big model or heavy dutyHydraulicPowerful drive, high efficiencyStable performance, low noise, anti-explosionIdeal for heavy wall thickness & large size pipeHydraulic requirement: 28-50L/min @13MpaElectric requirement: 380V 3PH 50/60HzRated Pressure: 13MPaRated flow: 28L/minMax. Torque: 380NMToolingForm Style and Insert StyleHSS, HSS Co, CarbideMake more tooling on demandForm StyleMaterial: M42 and M35Type: Sever, bevel, double bevelcompound bevel,counter boreAngle: 0°, 30°, 37.5°Double 30°, 37.5°+10°Size: 90mm, 150mm, 200mmInsert StyleMaterial: Holder HSSInsert: HSS-Co or CarbideType: Sever, bevel, double bevel, compound bevelAngle: 0°, 30°, 37.5°,Double 30°, 37.5°+10°Size: 90mm, 150mm, 200mm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.spli
