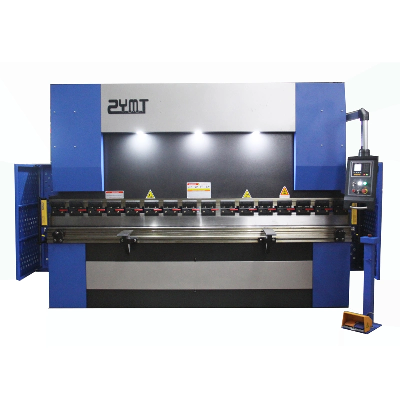

2mm Sheet Metal Bending Machine 63 Ton Plate Bending Machine

2mm Sheet Metal Bending Machine 63 Ton Plate Bending MachineMain Features:1. Whole steel welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity; Torsion bar with hydraulics;2. Integrated hydraulic system, upper transmission, pressure control for adjustment of tonnage;3. Removement foot-pedal switch and emergency stop button; Segmented upper punch, multi-V die;4. Back gauge and upper ram travel automatic control, micro adjustment by manual and digital displayer;5. Oblique steel solid deflection compensation device is adopted for upper punch;6. International standard electrics and switches;7. Can equip kinds of NC controllers: Estun E21/E200P, Delem DA41, Maper HT072, Elgo P40 ect.8. Control axes: Upper ram(Y-axis), Back gauge (X-axis) Standard Equipment: 1.System Intermediate Upper clamps with Anti Wedges 2.Plate Support Arms3. Powered Depth Axis4. Backstop5. Light guards6. Top and Bottom Tooling 7. Estun E21 NC control8. Germany Bosch-Rexroth Hydraulic  9. SchneiderElectrics10. Hydraulic and Electrical overload protection11. Squaring Arm and Front Support Arms12. Delta inverter with ball screw and polished rod with 0.05 mm accuracy.13. Side guard is standard meeting CE regulations. Estun E21s NC Press Brake Control system:1. Monochrome LCD Box Panel.2. Integral factor programmable freely3. Automatic positioning control4.Spindle allowance offset5.Internal time relay6.Stock counter7.Backgauge position display, resolution in 0.01mmThe best bending results You can bend longer and deeper parts with standard AC/MB7-Bend Series.Other standard equipments: Segmented upper punch die 1set Lower die in one piece Stop fingers 3 Front supporting arms 2 Emergency stop button; Back, left and right safty fence Foundation bolts 1set Manuals and diagram 1book  Parameters: TypeNominal Force(KN)Worktable Length(mm)Poles Distance(mm)Throat Depth(mm)Slider Travel(times/min)Max Open(mm)Power(kw)40T/2200400220018502301003205.540T/2500400250018502301003205.550T/2500500250018502301003205.563T/2500630250019002501003205.563T/3200630320025602501003205.580T/2500800250019903001003207.580T/3200800320025603201003507.580T/4000800400032003201003507.5100T/25001000250019003201203507.5100T/32001000320026003201504007.5100T/40001000400032003201504007.5125T/320012503200260032015040011125T/400012504000320032015040011160T/320016003200258032020046011160T/400016004000290032020046011160T/500016005000390032020046011160T/600016006000490032020046011200T/320020003200248032020046011200T/400020004000290032020046011200T/500020005000390032020046011200T/600020006000490032020046011250T/320025003200245040025059018.5250T/400025004000290040025059018.5250T/500025005000390040025059018.5250T/600025006000490040025059018.5300T/320030003200245040025059022300T/400030004000290040025059022300T/500030005000390040025059022300T/600030006000490040025059022400T/320040003200240040025059030400T/400040004000290040025059030400T/500040005000390040025059030400T/600040006000490040025059030500T/500050005000390040025059045500T/600050006000490040032059045600T/500060005000290040032059055600T/600060006000490040032059055Company Introduction: 1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001. 2.Total number of emploee: 500 3.All kinds of sophisticated equipment more than 100 sets. 4.Production plant area:60,000. 5.Whole factory is controlled by ERP-Enterprise Resource Plan. 6.CE/SGS/ISO9001 certification. We are producing below ranges of machines: 1.NC/CNC Press Brake 2.NC/CNC Shearing Machine 3,Rolling Machine 4.Iron Worker 5.Power Press 6.Hydraulic Press If you have any demand, please contact me directly, or browse through our web site: leolivia.en.made-in-china.com /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
