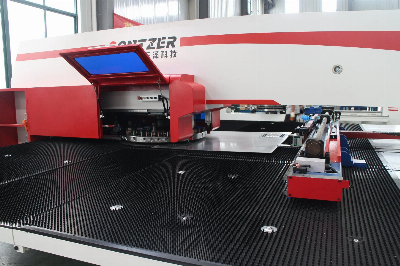

Thick Turret, CNC Hydraulic Press Brake Machine for Aluminum Copper

Thick Turret, CNC Hydraulic Press Brake Machine for Aluminum Copper  Detailed Photos* Steel plate frame* Tempering fireplace* One-step clamping* Thick rotating tower* Extending mold life* High accuracy* International standard 85 series mould* High surface hardness* Strong anti-abrasion* Tempering clamp slide* Blackening of clamp surface* Installing scalesPunching ModelProduct ParametersITEMSUNITSPECIFICATIONSPunch ForceKN30Frame Structure/O typeMax. Processing Sheet (Reposition)MM2500* 1250No. Of ClampNO. 3Max. Processing Sheet ThicknessMM6.35Max. Punch DiameterMMΦ88.9Punch PaceHPM1800Max. Punch Hit at 1mm PaceHPM800Max. Punch Hot at 25.4mm PaceHPM400No. Of Tool StationNo. 16/24/32, including A,B,C,D station setControlling AxisN0. 5 (X/Y/R/T/C)Mould Structure/International Standard MouldMain Motor/Japan PanasonicReposition CylinderSet2Max. Steel Moving SpeedM/min106Tooling Rotation SpeedRpm30Accuracymm±0.1Max. Load WeightKg156Air PressureMPa0.6PowerV380± 5%Total WeightT14Outline Dimensionmm5200* 5200*2280  Product category  Company Profile FAQ1.  How about the delivery time?Generally it's 15-30 days based on the model.2.  How is the warranty time?1 year after installation.Lifetime free technical support.3.  How to choose the suitable machine?Please advise us the material/ thickness/ dimension of metal sheet, and the punched drawing./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
