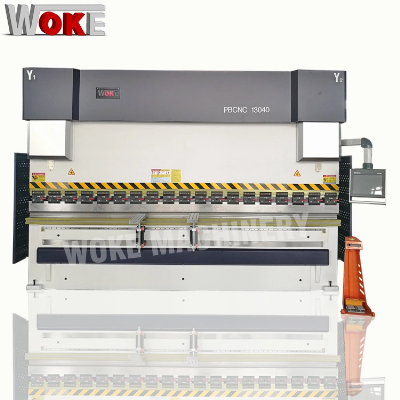

CNC Press Brake 125ton 3 Meter 3 Axes

NC & CNC Hydraulic Press Brake, Sheet Metal Bending Folding MachineMachine Performance & Advantages:» The frame is steel-welded construction, vibration to eliminate stress, with high strength and good rigidity. » Synchronized positive stop design, and by Estun CNC programmable controller assuring accurate repeatability & ease of use. » Integrated hydraulic system allowing rapid approach switching automatically to slow bend. » Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays. » Safe fence and the electric inter locker have bee designed for the machine to ensure the operation safety. » The RAM is adopted hydraulic top-drive with two cylinders, working smoothly and stably. » Mechanical stop nuts ensure stable and reliable positioning accuracy. » The segmented punches of different length are adopted which can be combined into a certainLength according to the processing demand to meet the different requirement of special workpieces. » Back gauge is driven by linear guide way and ball screw, quick, convenient and accurate. » The machine can be adopted with normal clamp devices or quick clamp as an option according to the customer's requirement to decrease the labors' work intension and increase the work efficiency. Technical Parameters:ModelNominal pressureWorktable lengthDistance between columnsThroat depthOpeningMotorDimension(LXWXH)  TonmmmmmmmmKwmm40T/1500401500118025032541850×1300×210040T/2000402000155025032542250×1300×210040T/2500402500205025032542750×1300×210063T/250063250020502503605.52750×1350×223063T/320063320026002503605.53450×1350×223080T/250080250020503203807.52750×1400×235080T/320080320026003203807.53450×1400×2350100T/2500100250020503203807.52750×1450×2380100T/3200100320026003203807.53450×1450×2380100T/4000100400032003203807.54250×1450×2380125T/2500125250020503203807.52750×1450×2380125T/3200125320026003203807.53450×1450×2380125T/4000125400032003203807.54250×1450×2380160T/250016025002050320380112750×1700×2600160T/320016032002600320450113450×1700×2600160T/400016040003200320450114250×1700×2600200T/320020032002600320470153450×1850×2860200T/400020040003200320470154250×1870×2950250T/32002503200260040053018.53450×1920×3050250T/40002504000320040053018.54250×1950×3150300T/320030032002600400560223450×2200×3130300T/400030040003200400560224250×2250×3320300T/600030060004700400560226100×2250×4250400T/320040032002600400640303200×2280×3250400T/400040040003200400640304000×2300×3600400T/600040060004700400640306000×2350×4650500T/600050060004700400640376000×2450×4700600T/600060060004700460650456000×2700×5710Provide all kinds of bending tools for complex workpiece:Machine view:  E21 NC control system, 2 Axis(Y,X)Features: -Backgauge and block control -Control for general AC motor, frequency inverter-Intelligent positioning -Stock counter -Holding / decompression time setting-Program memory of up to 40 programs up to 25 steps per program -One side positioning-Retract function -One key backup/restore of parameters and programs -mm/Inch -Chinese/English  E300 CNC control system, 3 Axis(Y,X,R), Servo drive Features:-Support X,Y, R servo control, hydraulic or mechanical crowning option-Built-in control logic, hydraulic valve and I/O port logic configuration freedom.-Accuracy angle program, built in tool library and material.-EDS/ProNet servo.-Microswitch keyboard plate-Collision detection,R axis collision avoidance function.-USB interface. One key backup/restore of parameters and programs.-One page program.-Advanced CAD bus servo technology.-Color LCD screen   DELEM DA52S , DA58T, DA56, DA66T CNC control system, 3 Axis(Y1, Y2, X) or more(R,Z1, Z2)Features:-Quick, one page programming-Hotkey navigation-7'' widescreen colour TFT-Up to 4 axes(Y1, Y2, and 2 auxiliary axes)-Crowning control-Tool/material/product library-USB, peripheral interfacing-Advanced Y-axis control algorithms for closed loop as well as open loop valves-Panel based controller with optional housing.     Sectionalized punch can combine any size you want:Sheet metal working machines our company supply:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
