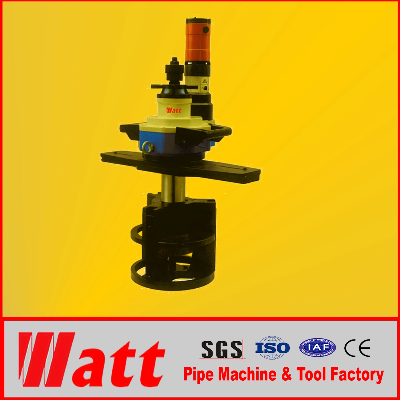

Pipe & Flange |Cutting |Beveling |Facing |Drilling |BoringII-PIPE BEVELING MACHINEOVERVIEW S-INNER MOUNTED PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power. FEATURES 1,Cold cutting, without influence the material of the pipe 2,ID mounted, adopt T structure 3,Varity of beveling shape: U, Single-V, double-V,J beveling 4,It can also be used for repairing inner wall and deep hole processing. 5,Working range:12.5-330mm 6,Driven motor: Pneumatic and Electric 7,Customized machine is acceptable CAPABILTY 1,Pipe end beveling 2,Inside beveling 3,Pipe facing BEVELING SHAPE SPECIFICATION:ModelWorking range(mm) Wall thickness(mm)Rated power (kw)Rotating Speed(rpm)ElectricPneumaticS6QS6Ф60-170≤151.4330S8QS8Ф80-240≤151.4316S12QS12Ф150-330≤ 151.4310S24QS24Ф300-600≤ 151.438S32QS32Ф600-820≤ 152.07Technical Parameters: Pneumatic: Pneumatic motor drive, air pressure 0.8 ~ 1.0Mpa, air consumption 1500 ~ 3500L / min; electric: Overtone motor drive, power 110V or 220V optional, power: 1.7-2.2KW, frequency: 50 ~ 60Hz; TOOLING other beveling shape, angle and pipe material, please declare before orderIntegrated tool can be reused by grinding Material:M42 and M35 Standard supplyInsert tool Insert same, different angle holder HolderMaterial: HSS ; Insert material: Cermet or Carbide Optional /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
