Cheap Chinese CNC High Definition Plasma Cutting Machine

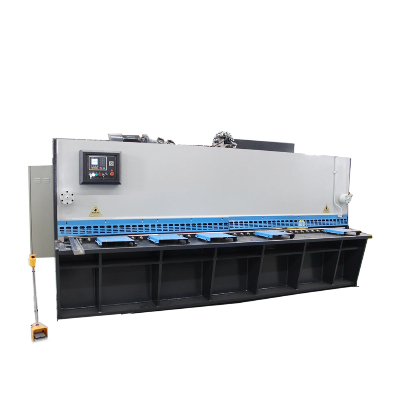

Cheap Chinese CNC High Definition Plasma Cutting Machine   1. Equipments for QC12Y & QC12K2. Features QC12Y FeaturesThe machine is metal plate welded structure, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice appearance, fitted with digital controller.Indication by indicator is provided for adjustment of blades clearance, for a handy and prompt adjustment.Alignment device with lighting and control device for shearing stroke are set.Worktable with balls for material feeding convenient, to minimize fish tail with sheet bar and to reduce frictional resistance.QC 12K FeaturesThe machine is fitted with CNC controller special for shearing machines.The position of rear stopper is displayed in real-time manner.Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision prcsessing. 3. Controller  System E21SBackguage control, control for general AC motor, frequency inverter;Intelligent positioning, double programmable digital output;Stock counter, program memory of up to 40 programs, up to 25 steps per program;One side positioning, retract of function.One key backup, restore of parameters;mm/inch transmission, Chinese /English Transmission; LCD display; DAC310Bright LCD 128×64 displayBackguage control, Gap control, Stroke length limitation.Actual and programmed position visualization, Stock counter,Programmable up to 100 steps.Panel-based housing;Servo control/unipolar/AC two-speed control;mm/inch transmission; E200SBackguage control, bus mode control servo system;Stroke length limitation, double pragrammable digital output;Pragram memory of up to 40 program, up to 25 steps per program;One side positioning, retract of function.mm/inch transmission, Chinese/English transmission;240×128 pixels LCD display. P40Analog or digital outputs for 1-3 speed operation 16 free programmable digital in-/outputsProgram memory(1000 sets)Angle control/gap control/backguage Limitation of the cutting lengthMaterial List for angle and gap controlHT071Regulated power supply for encoder or push pull/o.c.optional line 12 Vdc±5% 120 mAOptoisolated inputsHigh luminosity led display having 6 digits plus sign for position,2 digits fpr cycles and for programs.Possibility to save up to 99 programs composed of 20 cycles.Each cycle can count 65000 repetitions at maximumData and programs are saved in a flash memory without floating battery Ip 65, polycarbonate, water and abrasion-proof keyboard with tactile sensitivity. China ESTUN E10SX axis and Y axis position display;Resolution:0.1mm or 0.0001 inch;Stock counter, 2 timer integrated;One side positioning indication;Sofware limitation;Power-off memorization. 4. General Technical Parameters   TypeCuttingThickness(mm)Cutting Length(mm)Cutting Angle(°)Material Strength(KN/CM)Stroke (times/min)Power(kw)Weight(kg)Dimension(mm)4×2500425001°30'≤450105.538003040*1610*16204×3200432001°30'≤450105.550003840*1610*16204×4000440001°30'≤45085.565004600*1700*17004×6000460001°30'≤45057.5110006460*2100*32006×2500625001°30'≤450107.550003040*1610*16206×3200632001°30'≤45097.560003840*1610*16206×4000640001°30'≤45087.580004620*1750*17006×5000650001°30'≤45067.5105005400*1750*17006×6000660001°30'≤450511165006480*2100*23008×2500825001°30'≤450107.560003040*1700*17008×3200832001°30'≤45087.572003860*1700*17008×4000840001°30'≤45087.588004640*1700*17008×5000850001°30'≤45087.5115005400*2400*20008×6000860001°30'≤450811180006480*2100*235010×25001025001°30'≤45091173003040*1700*170010×32001032001°30'≤45091180003860*1700*170010×40001040001°30'≤450811120004650*2100*200010×60001060002°≤450515240006500*2100*230012×25001225002°≤450918.590003140*2150*200012×32001232002°≤450918.5108003880*2150*200012×40001240002°≤450818.5130004680*2150*200012×50001250002°≤450618.5160005900*2150*200012×60001260002°≤450518.5290006900*2600*270012×80001280002°≤450518.5465009000*3500*350016×25001625002°30'≤450918.5110003140*2150*200016×32001632002°30'≤450818.5130003880*2150*200016×40001640002°30'≤450818.5163004650*2150*220016×50001650002°30'≤450618.5200005900*2600*270016×60001660002°30'≤450522360006900*2700*270020×25002025003°≤450822155003440*2300*250020×32002032003°≤450822180004150*2350*270020×40002040003°≤450522210004850*2350*270025×25002525003°≤450837190003200*2700*290025×32002532003°≤450537230004200*2700*290025×40002540003°≤450537270003850*2700*290030×25003025003°≤450537235003300*2900*290030×32003032003°≤450537275004200*2900*2900  5. Packing & Shipping (1)Before packing, the machine tool will be testing for 48 hours to ensure all the equipment is 100% qu
