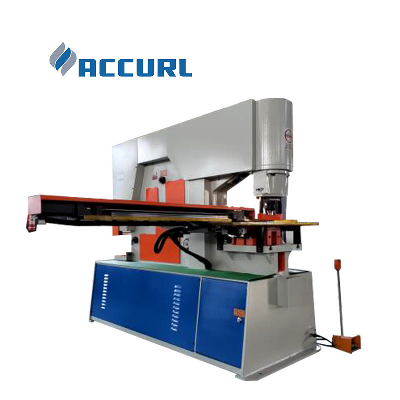

Automatic Hydraulic Press Iron Worker Punching Machine

Automatic Hydraulic Press Iron Worker Punching Machine   Product DescriptionHydraulic ironworker IW SeriesAccurl Hydraulic Ironworkers are designed with multiple functions to save labor, time, energy and cost. This allows Accurl Ironworkers to meet the diversified needs of the metal fabricating industry. Maximum efficiency and long life is guaranteed by using the latest manufacturing methods, including powerful CAD design, modern production line with CNC equipment and continuous quality control.Detailed PhotosWORK STATIONS                               Punching Station1. A full range of punches and dies are available for various punching needs.2. Quick change retaining nut system for fast punchtooling change.3. Thoughtfully designed stripper for visibility, safety and ease of use.4. A large 2-piece table with scales and gauging stops is standard on all models.5. Stripper with interchangeable plates of various openings to minimize deformation is standard on all models.                               Angle Shearing Station1. Single shear with no material loss and minimal deformation.2. 45° miter-cut is easy and clean.3. Stationary blades with four usable cutting edges.4. Selectable corner radii on moving blades for optimum results on small or large angles                      Angle Shearing Station1. Specially machined upper blade to give a clean shear with minimum distortion.2. Lower blade has four usable cutting edges.3.Variable degree miter-cutting on angle flange.4. Easily adjustable hold-down.5. Support table with guides for accurate positioning.                         Bar Shearing Station1. One hold-down for various sizes of square bar shearing and round bar shearing.2. Optional channel and section bar shear tooling is available for most models. (See specification chart for details)Notching Station1. Ideal for notching of flat bars and angles.2. Electrically interlocked safety guard for maximum safety and visibility.3.Gauging table included with stops for precise positioning.PUNCHING MODELIW-60SIW-60SDIW-80SIW-80SDIW-100SIW-100SDIW-125SIW-125SDIW-165SDPunching Force60 Ton80 Ton100 Ton125 Ton165 TonPunch Capacity Sø22 x 20ø26 x 22ø28 x 26ø33 x 27ø37 x 32Punch Capacity SDø50 x 9ø50 x 12ø50 x 15ø50 x 18ø50 x 24Throat Depth S310310310310- - -Throat Depth SD510510510510510Maximum Stroke Length100100100100100Cycles / Min. (20mm stroke)3029282829  View More Products,click here...Company Profile  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
