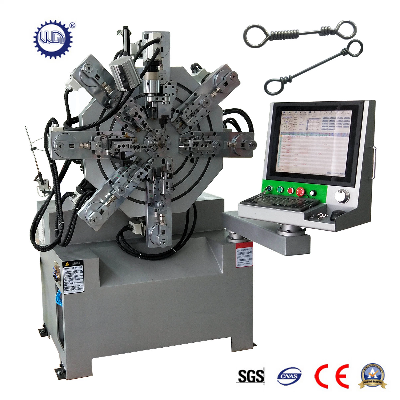

CNC Thin Steel Wire Spring Making Machine

CNC Thin Steel Wire Spring Making Machine Product ApplicationThis machine is designed to have no cam and without swing arm, which shorten the installation time and labour cost. less skill will be enough for tough task. keeping the advantage of traditional forming machine. excellent servo motors and reducers ensures excellent movement and precision of forming.  ModelGT20-10GT25-10GT30-12RGT35-10GT35-12RGT45-12RGT50-12RGT60-12RGT80-12RGT100-12RGT120-12RWire dia(mm)0.2-2.00.2-2.50.4-3.00.8-3.50.8-3.51.2-4.51.2-5.02.0-6.03.0-8.04.0-10.05.0-12.0Max. wire feeding value (mm)1000010000100001000010000100001000010000100001000010000Min. wire feeding value    (mm)0.010.010.010.010.010.010.010.010.010.010.01Max. wire feeding speed (m/min)12012012012080808080806060Max. wire feeding length           UnlimitedUnlimitedUnlimited UnlimitedUnlimitedUnlimitedUnlimitedUnlimitedUnlimitedUnlimitedUnlimited Axis number1010121012121212121212Total output power of servo motors(kw)6.6KW10.0KW13.3KW14.2KW17.6KW21.8KW22.9KW39.8KW55.0KW86.3KW96.6KWInput power supply       (V/HZ/PH)380/50/3380/50/3380/50/3380/50/3380/50/3380/50/3380/50/3380/50/3380/50/3380/50/3380/50/3Control systemMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanMade in TaiwanProgram storage (plus)30003000300030003000300030003000300030003000Compressor air pressure                (kg/cm)5-65-65-65-65-65-65-65-65-65-65-6Probe number33333333333Overall length(mm)11001200150014002200265026503500350042004300Overall width(mm)8001250125015501550180018002150215023502500Overall height(mm)15501760186018001850207020702150215025802650Net weight(kg)70098015001600250041004500700072001200015000 Main Features1) Simple Structure In Linear Type ,Easy In Installation And Maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) High pressure double crank to control the die opening and closing. 4) Running in a high automatization and intellectualization,no pollution 5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .  Dongguan Xinsheng Hardware Machinery Co.,LtdAddress:Waijing industrial area, Niushan village,  Dongcheng district,Dongguan city,China 523000 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
