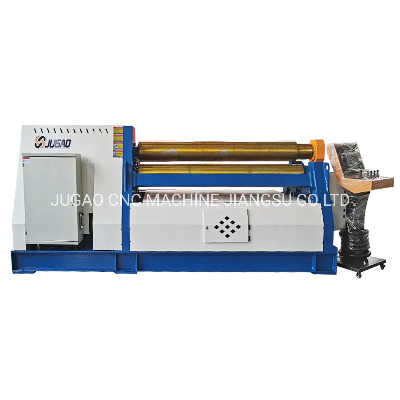

Hydraulic Four Roller Plate Bending Machine Steel Plate Rolling machineKeywords:bending roll machine,cnc plate bending machinery,cnc rolling machine,hydraulic rolling machine,metal rolling machine,plate bending machinery,plate bending roll,plate rolling machine,roll bending machine,roll bending machine,sheet rolling machine The machine has pre-bending function for plate edge ,and can bend roll the plate one time without any thing re-rolling with combined procedure or prebending and bending roll into shape. The upper roller is the main drive roll, the down roller and two side rolls up-and-down movement is controlled by hydraulic drive. The up-and-down displacement of the down and side rollers are controlled by computer..Automatic leveling,display by screen , high synchronization precision ±0.2MM.Turnover bearing body dumping and reset is done through hydraulic transmission.The upper roll end has balance equipment to be convenient take of the rolled cylinder and workingpieces.There are moveable independent operation table for easy moveable operation. 1. The four-roller bending machine adopts a torsion-axis synchronous structure, and the four-roller coiling machine has high precision and roundness after being rolled up! 2. Full hydraulic motor drive, four-roller coiling machine is environmentally friendly and energy efficient. 3. Straight side is short and the pre-bending effect is good! More suitable for roll cones . 4. The four-roller reeling process is completed in one pass, including bilateral pre-bending. The four-roller reeling machine is fast, efficient, and easy to operate, requiring only one operator . 5. With automatic alignment and clamping function, the plate will not slide and run off. 6. The four-roller bending machine has anti-overload and hydraulic protection functions. 7. With anti-wear, permanent lubrication-free features. 8. The diameter of the reel is small (the four-roll bending machine can roll a cylinder that is less than 1.1 times the diameter of the upper roller, and the linear sliding-guided Rolling machine can have a diameter of 1.4-0.5 times the diameter of the upper roller).Product parametersSpecificationMax roll thickness(mm)Max roll widthYield strengthRoll speedMin roll diameterDiameter of upper rollerDiameter of down rollerDiameter of side rollerMotor(mm)(Mpa)(m/min)(mm)(mm)(mm)(mm)(kw)W12-25X2000252000245480035032024022W12-20X2500202500245464035032024030W12-30X20003020002454100040036024037W12-25x2500252500245480040036024037W12-35x20003520002454120042038021037W12-30X25003025002454100040036023037W12-40X20004020002454140048040042045W12-45X20004520002454160050045038045W12-35X25003525002454120048040042045W12-40X25004025002454140050045038045W12-45X25004525002454160053048045063W12-35X30003530002454120050045038045W12-45X30004530002454160056050045063W12-55X25005525002454200060055050075W12-55X30005530002454200062056050075W12-65X300065300024542400670600550110View More Products,click here....../* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
