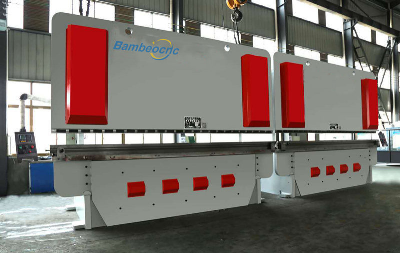

Tandem Bending Machine/2 Unite Double Tandem Press Brake

Hydraulic Press Brake WC67K SERIES 1.The whole machine is in steel plate welded structure,with internal stress eliminated by  vibration aging                    technology ,high strength and good rigidity of machine  2. Thickening of the table plate, the slider, so that the machine has high rigidity and overall welding     machine frame after a one-time process, so slider ,worktable have less deformation of the work     piece while bending, and the final product have excellent straightness and angle consistency. 3. Torsion shaft synchronization mechanism for the slider synchronous mechanism and the      mechanical stopper mechanism, stable and reliable. 4. Back gauge distance, the slide stroke adjustment controlled by servo motor and CNC system.     Back gauge adopts precision ball screw, linear guide, synchronous belt wheel drive, run fast,     accurately positioning data. 5. CNC system adopts two-axis servo control technology, set and saved hundreds of bending     programs,each consists of a plurality of machining step programming. 6. Front feeding device moves lateral through precision linear guide, easily control the spacing     between the arms. 7. Adjustable height level, which greatly improves the convenience of the work piece bending.  Performance characteristics:Choose two WC67K series host with specifications, configuration linkage of two synchronous device. Two machine tools linkage can be special workpieces. Two machine tools can also be used separately at the same time, improve production efficiency. On the slider stroke and the rack position behind mobile rapid adjustment, manual fine tuning, electronic numerical control display.   Standard Configuration1.NC ControllerE21 controller ;E200P;DA412.Hydraulic SystemBosch Rexroth From GermanyHydraulic system:--Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch - Rexroth,Germany.--All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance--Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.--The hydraulic system is made in compliance with current regulations (Directive 98/37 EC). 3.Main MotorSiemens From Germany 4.Main ElectricsSCHNEIDER from FranceElectrical system and the safety interlock:--Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability--Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate--Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.5.Seal RingNOK From Japan6.Pipe ConnectorEMB From Germany7.Ball SrewHiwin From Taiwan8.Limit SwitchSCHNEIDER from France9.PumpBosch Rexroth From Germany10.Foot SwitchKarcon From South Korea11.with standard upper and lower mold (superior oblique block type12.with the former carrier aircraftC45 42CrMo tool :Technical Parametres:Work shopFAQQ1:How Can i calculate the Machine Capacity?A: Just send me the Max thickness and Length .Engineer will tell us the capacity directly  Q2:How about the machine warranty?Is the whole machine?A:We canoffer 4 years warranty for the following parts : --Hydraulic System with pump and Valve--Hydraulic Cylinders--Electric units--Hydraulic Cylinders--Gasket Ring( We will send you extra with the machine also )--Tube Connector--Control Button--Limit Switch--ControllerDuring the warranty period we provide any accessories for freeQ3: What is your MOQ?A:To let more customer know our quality, we accepty trial order service,So the MOQ is 1 set.Q4: what is your delivery time?A:We supply prompt delivery time:30-35days.Q5:What kind of Service  does your company support?A:Engineers Available to Service Machinery Overseas  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
