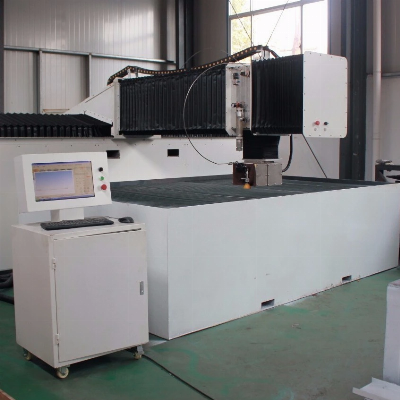

Waterjet Cutting Machine

DescriptionWater jet cutting, ultra-high pressure water jet cutting machine is to ordinary water through an ultra-high pressure presses, the water pressure to 3000bar, and then through the channel diameter of 0.3mm water nozzle produces a water jet about 3 times the speed of sound, Under the control of the computer can be easily cut any graphics soft materials, such as paper, sponge, fiber, etc., if added to increase the cutting power of sand, you can cut almost any material.Water jet cutting machine consists of four parts,water jet cutting table( cnc controller),water jet cutting head,water jet abrasive feeder system and waterjet intensifier pump.SpecificationCutting tablemodel13132015302040206020customizedsizeStructuregantry water cutting platform/cantiler series cutting platformTravelX axis1300mm2000mm3000mm4000mm6000mm Y axis1300mm1500mm2000mm2000mm2000mm SpeedMax.move speed (x axis and y axis)6000mm/minMax.move speed (z axis)1000mm/minAccuracyPositing Accuracy0.127mmRepeat Accuracy±0.076mmWater tank maximum Loading Capacity300Kg/m2Cutting head3 axis / 5 axis Movement : Linear motion/Rotary motionCNC Controller15 inch LCD montiorSupport DXF and NC code fileSoftware: Windows XPResistance of the shoch and electro-magnticThe key functionForward & Backward processing functionEven pace control functionSmall arcs speed auto processing functionCircle processing functionPartial and smooth processing modesAbrasive FeederMax. inlet air pressure      0.2-0.4 MpaMin. inlet air flow           0.028m3/minAbrasive capacity           170 LFeaturesAir valve to prevent jams and breakages      Self sealingAuto control with CNC auxiliary function        Slightly adjust the FLOW  Intensifier pump/direct drive pumpintensifier pump direct drive pumpReted power : 50HP (37 KW)Max.pressure : 60000psi (4137 bar)Control voltage and cuttent : 24DC,10AMPSReted power 30HP (22KW)Output pressure : 55000psiMax.pressure : 60000psi (4137 bar)Ambient temperature : 5-40 ºCFuel tank capacity :114LCooling flow : 11.4L/MINAir: 80-120psiOperating voltage and power:210-240/360-420V 50HZAmbient temperature : 5-40 ºCAttenuation : 1LLong : 1473 MMWidth : 1205 MMMin.inlet water : 60psi 1 gallon/min.Pump speed: 720 rmpFuel tank capacity : 2.6 Lwater jet maintenance kithigh pressure repair kit low pressure repair kitswitch rapair kit check valve repair kitpcv repair kitdynamic seal repair kitminor maintenance kitmajor maintenance kitWater jet cutting tablecutting table,water tank and cnc control systemWater jet cutting head3 axis ECL abrasive cutting head/ 5 axis water jet cutting headCompany ProductMajor Productswater jet cutting machinewater jet intensifier pumpwater jet cutting  head( 3 axis and 5 axis )waterjet intensifier (60k and 87k)waterjet spare partswater jet maintenance kithigh pressure tubeTee,Blbow,Coulping,Insert,Plug,AdapterSuperior product94 ksi high pressure waterjet partswaterjet direct drive partswaterjet direct drive pumpCustomize cutting table  Packing and ShippingWater jet cutting machine spare part package :  soft packing inside ,carton packing outside.water jet cutting machine package : wooden packageThe package ways is also can according to the requirement of customerBusiness Card /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
