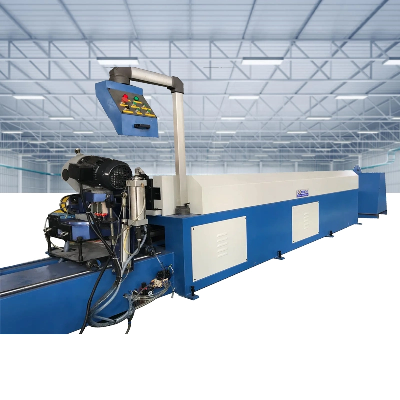

Tdc Flange Roll Forming Machine for Ventilation Square Ducts

Address: No. 33, Southeast Avenue, Changshu City, Suzhou City, Jiangsu Province, ChinaProduct FeatureTDC flange roll forming machine is using for duct TDC connectors.Slip on Flange is one of the two universal rectangular duct flange making systems in the world.It can save time and material drastically with its well-seal, strong, and durable joint structure.So Slip Flange Roll Form Machines is much more suitable for producing a duct with a large sectional area. also has different models like TDC-20, TDC-30, and TDC-40 depending on the different width slides on the frame flange, etc.The Slip Flange lines can also be equipped with a device for the injection of sealing mastic directly during the forming process.TDC Flange Roll Former Machine consists of decoiler, main roll forming, and Auto cutting system. There are two kinds of cutting systems, one is a simple grinding wheel cutter and the other is automatic cutting with a high cutting speed up to 6m/min. Details Images  ModelThickness(mm)Weight(kg)Dimension(mm)Motor Power(kw)T200.5-1.015204900*1020*15403T250.5-1.015305500*1020*15404T300.5-1.0 15505600*1020*15004T350.5-1.017805600*1020*15004T400.5-1.218004900*1020*15404           Delivery/PackageFactory ViewFAQCompany ProfileExhibition     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
