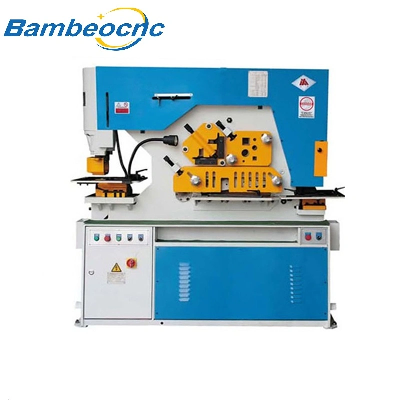

Q35y 85t Multi Functional Hydraulic Ironworker for T-Bar

Hydraulic Iron Worker Multifunction punching and cutting Machine                               The structure of the Hydraulic Iron WorkerQ35Y Series Hydraulic Iron Worker, Totally European design,The machine are strong and easy to use machines which are able to can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.Bamboo Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine Will serve any grueling fabrication shop for decades to come.The machine by the European Union CE certification and ISO quality system certificationHydraulic System--Rexroth Bosch Germany 1.Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch - Rexroth,Germany.2.All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance3.Being able to work under rated load continuously,stable working and high precision. Electric & Safety Interlock:1.Electrical components are from European,in accordance with international standards,reliable safety,long life,good anti-interference ability,a2.radiation unit is fitted in electrical cabinet.3.Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.4.Emergency stops on machine and foot switch for safety,Foot pedal conforming to CE regulation.2.Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overload protection device, simple structure,if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage.3.Die height adjustment of slider with manual mode, using V shaped slider guide rail, easy adjustment Technical Specification ModelUnitQ35Y-16Q35Y-20Q35Y-25Q35Y-30PressureTons5585120140Max.cutting thicknessmm16202530Plate strengthN/mm2≤450≤450≤450≤450Cutting angledegree7°8°8°8°Sheraing size of one stroke)mm16*250 or 8*40020*330 or 10*48025*330 or 16*60030*355 or 20*600Ram stroksmm80808080Number of strokescpm8866Throat depthmm300355400600Punching thicknessmm16202526Max.Punching diametermm25303538Power of main motorkw45.57.511Overall dimensions(L*W*H)mm1640*730*17701860*800*19002355*960*20902680*1040*2300Weight of machineKg1700200048006800  ProfileRound BarSquare BarEqual AngleT-BarjoistqChannel90°Shearing45°Shearing90°Shearing45°ShearingQ35Y-1645mm40*40mm125*125*12mm50*50*5mm120*120*12mm60*60*8mm126*74*5mm126*53*5.5mmQ35Y-2050mm50*50mm140*140*12mm50*50*5mm140*140*12mm70*70*10mm160*86*8mm160*60*6.5mmQ35Y-2560mm50*50mm160*160*14mm50*50*5mm160*160*14mm80*80*10mm200*102*9mm210*75*9mmQ35Y-3065mm55*55mm180*180*16mm60*60*6mm180*180*16mm80*80*10mm280*124*12mm280*86*12mm BAMBOO WITH CUSTOMERSFAQQ1:How Can i calculate the Machine Capacity?A: Just send me the Max thickness and Length .Engineer will tell us the capacity directly  Q2:How about the machine warranty?Is the whole machine?A:We canoffer 4 years warranty for the following parts : --Hydraulic System with pump and Valve --Hydraulic Cylinders --Electric units --Hydraulic Cylinders --Gasket Ring( We will send you extra with the machine also ) --Tube Connector --Control Button --Limit Switch --Controller During the warranty period we provide any accessories for free Q3: What is your MOQ?A:To let more customer know our quality, we accepty trial order service,So the MOQ is 1 set. Q4: what is your delivery time?A:We supply prompt delivery time:25-30days. Q5:What kind of Service  does your company support?A:Engineers Available to Service Machinery Overseas   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
