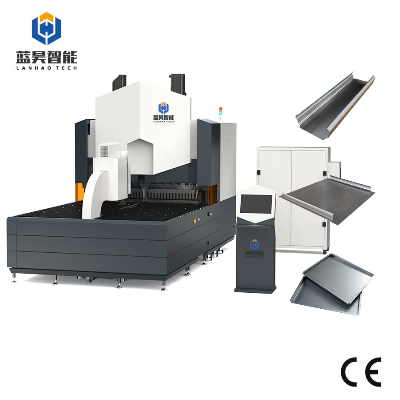

Fullly Automatic Bending Center for Metal Plate Folding 2500 mm

   LHA05-PC series intelligent panel bender adopts pressing arm loading method, and the whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces. It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc.Product ParametersLHA-2500PC-03 Technical parameters Feeding structurePressing armWork table structurebrushSystem minimum accuracy0.001mmMax bending speed0.2 second/timeMax feeding speed90m/minMax.bending width2500mmMax.Bending sizeL 2500mm X W 1500mmMax. Bending height(The maximum bending height after customization can reach 300mm)  170mm(customizable)Min. Bending height3mmMin.arc radius0.5mmRated power380VMotor power  79KWAverage power About 2.9 KWNoiseAbout 50 dBMachine sizeL565cm X W300cm X H340cmTotal weightAbout 19 tonsUser operating environmentWin7 or above systemMax. Bending thicknessUTS 515N/mm2  304 stainless steel   1.5mmUTS 410N/mm2  cold     panel   2.0mmUTS 265N/mm2  aluminum     panel   3.0mmMin. Panel thickness 0.35mmFour side forming min. Inner sizeAbout 140mmx190mm( excluding inverted folded side)Double side forming min. Inner sizeAbout 140mmBending angle0-180 degreeAxis15Hot Sale ModelsBending CasesApplication Company ProfileCertificationsOur AdvantagesAfter Sales Service /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
