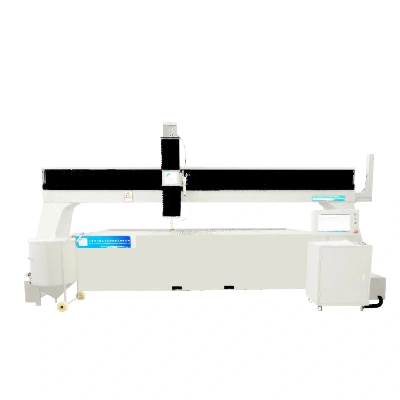

CNC Water Jet Cutting Machine for Marble and Steel Cutting

Product description:Faster, better, simpler Operation" - that's the result of YH Waterjet technology. System highlights include:Precision design cutting head system for easy access to replacement components and accurate control of the tool center point for high tolerance cutting.Minimal distance between cutting head top point and bottom to eliminate potential of Abbe error (a linear deviation combined with a lever arm; the longer the lever arm, the larger the Abbe error). Abbe error must be minimized to allow precision  production with YH cutting headFast Act on/off valve - a new high-speed, long-life, lightweight waterjet on/off valve.Simple operation with  Weihong Control Software. Simply enter the type of material, its thickness, the desired surface quality and the software calculates and precisely controls all the movements of the cutting head.1.The beam is an extrusion molding piece of alloy aluminium. lightweight, High-rigid, stable running and faster speed.2.Integral design,which has advantages of good rigidity and stability, uniform stress, stable running and precision.3.Special shield design,waterproof and dust proof.4.Bearing platform gratings adopts S-type, nets and straight line design,Which can be chose according to 5.different requirements , has strong practicability and can be durable in use.6.There are adusting nuts on the bearing platform to regulate the flatness.7.Imported servo driver, accurate localization, stable running, to ensure machining precision.8.Safety protection:overtravel range limit protect function.9.Taiwan TBI Lead Screw(imported) guarantees high precision of parts processing, non-clearance movement.10The Taiwan Silver Guide Rail guarantees high precision of parts processing,smooth transmission, and durable in use.11. Large split type gantry adopts separate rack, helical pinion and rack have the advantages of good rigidity, high precision, more stable running, unlimited length, high cutting efficiency, and no effect on precision and cutting quality.Cantilever type NC cutting platform can install and discharge workpieces from three directions, which overcome the gantry's drawbacks, such as , loading material can only from both sides and work pieces' size are limited .it is practical for cantilever machine to place materials larger than the platform.The running mechanism detached from cutting platform and have no effect on each other, the space of up-down material is larger, especially suitable for the Irregular material size and the situation which means of up-down materials is not fixed.Cutting platform technical parameters:Power source: 220/380/415V AC,50/60HZX-Axis Max.speed: 6000mm/minY-Axis Max.speed: 6000mm/minZ-Axis Max.speed: 1000mm/minControl precision: ±0.02mmCut precision: ±0.1~±0.2 subject to speed and thickness of materials.Resetting precision: ±0.02Drive system JAPANESE YASKAWA2.60,000 psi Ultra High Pressure Technology System (94,000psi as an option) TECHNICAL DATA Max. Pressure                  420 MPaBoosting Ratio 20:1Max. Water Flow3.7L/minMax. Orifice Diameter  0.33mmHydraulic Reservoir Capacity30 gal (114 L)Attenuator Volume.26 gal (1L)Water Inlet Pressure≥0.2MPaPower of Main Motor  37kwPower Supply Voltage380V/50HZYH WATERJET can provide pump options YH-7XSP-420mpa is available (single intensifie /50hp)YH-7xdP-420mpa double intensifier pump /60HPYH-7xdP-600mpa double intensifier pump/60HPYH-20WDP-600mpa double intensifier pump/100HPYH 420mpa Direct drive pump/30HP3.Abrasive cutting system There are three main components: a metering valve,3 AXIS cutting head, and an abrasive bulk transfer.4.Cutting head and orifice assembly CNC water jet cutting machine can flexibly process (cut off, engrave, make hole, drill) virtually all materials with consistent quality. It has found great application in metal, glass, stone, chemical & petroleum, automotive, advertisement and etc industries.Price & Delivery:FOB Shanghai: price range 28,000-100,000 USD, which is subject to our final confirmation.MOQ: 1 setTerm of Payment: T/T 30% deposit; T/T70% against B/L copy.Term of Shipment: by sea with 20/40 ft standard containerBrand Name: AoyuWarranty: one yearTechnician Support: Free field training and installation is available. Please contact us for details.OEM iS also welcomed! Waterjet Cutting Machine   7m*2m Gantry waterjet cutting machine 9m*4m Gantry waterjet cutting machine 4m*2m Fly waterjet cutting machine 3m*2m Fly waterjet cutting machine /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
