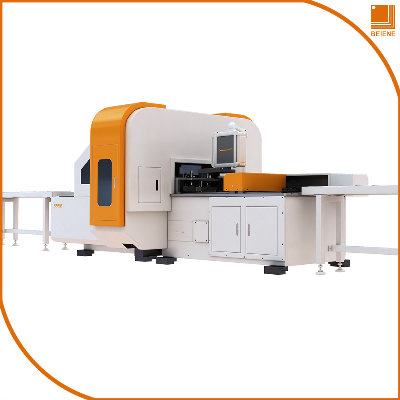

Intelligent Busbar Processing Center for Busduct

 Our Advantages1. Japan YASKAWA  Servo Control and Driver2. Friendly HMI3. Automatic Calculate Length and Position4. Flaring with Flexible Angle .5. Less Labor but High Efficiency and High Accuracy6. One Time Completed Length cutting and Flaring  SpecificationDescriptionsUnitDataNominal ForceCutting  By Sawing 305mmFlaringKN300X Axis Speedm/min48Chief Clamp Stroke X1-Waymm1500Aided Clamp Stroke X2-Waymm2000Y Axis Stroke mm250Flaring Strokemm30Station SawingSet1FlaringSet1Tolerance mm/m±0.2Air Source MPA0.6-0.8Max Sheet Size(L×W×T)mm6000×120×7mmMin Sheet Size(L×W×T)mm500×50×5mmTotal PowerkW12KWMachine Size:L×Wmm15000*3000mm  Configuration Control Unit  No.DescriptionsBrand 1PLCOMRON2SensorTelemacanique fm Schneider  3Control ButtonOMRON4Touch ScreenOMRON6AC ContactorABB7MCCBABB8Switch OMRON9Hydraulic Motor WN10Servo Motor YASKAWA 11Servo DriverYASKAWATransmission Unit:Serial numberNameBrand1Precise Guide RailTaiwan HIWIN2Precision ball screwTaiwan  HIWIN3BearingJapan NSKHydraulic Unit:Serial numberNameBrand1Solenoid ValveATOS2High-pressure Pipe Riva flex    3High pressure oil pumpSG Piston of Rexroth   Design SoftwareFinished Joggling Packaging & ShippingThumb up by Customer   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
