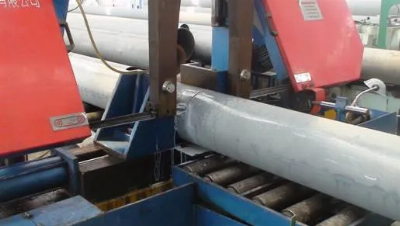

Pipe Cutting Machine-Band Saw High Speed

High Speed Pipe Cutting Band Saw Machine; Pipe Cutting Machine; Band Saw Machine Model No.: PCBSM-16AA /PCBSM-24AA/PCBSM-32AA Performance features 1 On-line Performance: Good (designed as per the one line equipment of the production line) 2 Opening quality: Good 3 Application Range: Used for projects with a majority of standard wall thickness & heavy wall thickness Technical parameters 4 Structure: Horizontal and with two columns, made special roller 5 Materials applicable: Carbon steel, alloy steel, stainless steel and cryogenic steel 6 Feeding speed: Stepless speed adjustment 7 Clamping mode: Both sides centering clamping automatically by hydraulic cylinder. 8 Band saw tension: Tensioning & loosen automatically by hydraulic 9 Cooling system: Built in coolant pump 10 Length-measuring system: A mechanical Length-measuring system could be provided if necessary so as to fix the length of the pipes as well as cut and bevel them with the supporting of the band saw conveying system. 11 Conveying system: Cutting and beveling VF band systems driven by motor are equipped if necessary. 12. Reference List: CNPC, SINOPEC, CNOOC, CNCEC, K. S. S, L & T, CSIC, CSSC, MCC, TECHNIP, TYCO, KEPPEL, DYNA-MAC, SOCOMENIN, C. C. C, CNEG, CHIYODA, EIL, PEC, CASC, ONSHORE etc. 13. Welcome to visiting our factory or project site at any time in Shanghai City, P. R. China; For more detail information please contact us. Thank you! Technical Description                                             Standard Type                           Cutting efficiency:≤ 2Min /one pipe cutPipe diameter applicable:            DN50-400/DN50-600/DN150-800(Basically  no wall thickness requirements)Speed of the band saw:  18, 42or68m/min; 27, 52or78m/min; 15-80m/min Size of the band saw:4570X*34*1.1 /6700X*41*1.3/8880*67*1.6 mmDimension of machine:  2300*1200*1650mm; 3600*1450*2100mm; 4550*1950*2600mm Weight of machine:  1500KGS; 5000KGS; 9000KGS (± 5%) our company is the most innovation ability provider of integrated solutions for piping fabrication, also is the unique provider of professional piping plant design software & management software system and piping equipments in China which included pipe spool fabrication line, cutting equipments, beveling equipments, fitting up equipments, handling equipments, welding equipments.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
