New Intellignet 3D CNC Servo Busbar Bending Machine with Copper and Aluminum

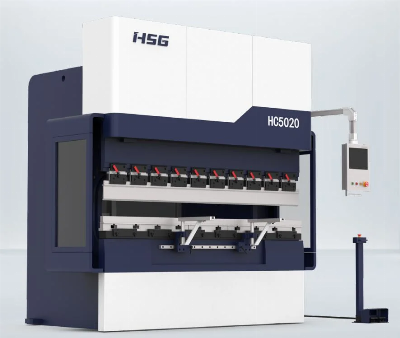

40 Ton 80 / 125t 2500 2.5m Metal Sheet Plate Construction Industry Hydraulic Plate CNC Bending Press Brake Machine PriceBending Machine Advantage:1.Servo Variable Pumping2.Carbon Steel Welded Frame3.Movable Front Carrier4.Various Upper and Lower Tools * Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine. Detailed PhotosIntroductionhybrid bending machine provided by HSG Laser is a new generation press brake features energy saving, low noise and steady.This bender adopts dual-servo motor to control the oil pump directly for fast braking speed, realizing a significant increase in production efficiency. Besides, the servo motor can stop work if flow or pressure is unneeded, which reduces noise and energy consumption.Another benefit is the low heat balance temperature lowers the risk of oil leakage, no need for cooling device, or traditional bulky oil tank. The service life of hydraulic system and oil cylinder improved greatly because of high stability.Automatic Deflection Compensation * Compensate for deflection deformation caused by platform * Calculate compensation according to length, thickness and angle of bending workpiecePost-positioning System* Move back and forth (X axis), up and down (R axis) driven by servo motor* 4 positioning fingers available   DSVP-based Oil-electric Hybrid SystemThis bender adopts dual-servo motor to control the oil pump directly for fast braking speed, realizing a significant increase in production efficiency. Besides, the servo motor can stop work if flow or pressure is unneeded, which reduces noise and energy consumption. Another benefit is the low heat balance temperature lowers the risk of oil leakage, no need for cooling device, or traditional bulky oil tank. The service life of hydraulic system and oil cylinder improved greatly because of high stability.  High-rigid Frame and Automatic Deflection CompensationHigh-rigid frame is optimized in shape and can improve the entire bending accuracy based on calculated Y value and accurate workbench positioning. The angle tolerance of bending workpiece is ±30'; Through programming, the automatic deflection compensation system can calculate compensation automatically according to the length, thick and angle of the bending workpiece, in addition, match with inverse deformation while boosting pressure.  Efficient and Reliable Post-positioning SystemPosition after high-speed movement, X-axis: 500mm/s, Z-axis: 700mm/s, R-axis: 60mm/s; length measured on X-axis: 600mm;High positioning accuracy, X-axis: ±0.01mm, Z-axis: ±0.1mm, R-axis: ±0.1mm.Note: Only applicable to HB1003/HB6020  Various Upgrade SolutionsAdd automation interface to enable automation upgrade whenever necessary, and make bending simpler and faster.Switzerland (CYBELEC) CybTouch 12PS Control SystemThe system can enable wireless interconnection via desktop or notebook computer for software upgrades and data backup anytime.* Touch screen * Correct angle and backgauge range * Auto calculation ofbending data, pressure and deflection compensation * Bending program makes mass production come true  Automatic Saving, Data SharingThe system supports multiple file format import, offer keyword-based retrieval and accept production instructions through bending plan function. Settings such as the order of bending and mold layout can be edited and saved. Note function is added for processing cautions noting and sharing. Processing information can be saved and the data is shared after processing.  Humanized Screen, Easy OperationHumanized screen supports special molds display. The functions of simulation and mold positioning & guiding are optimized for easy operation. Length compensation is available and easy. Processing is done based on 3D simulation.Bending Sample ShowProduct ParametersElectro Hydraulic Servo Bending MachineTechnical Parameters1103220432045020Controlled Axis4+14+14+14Bending Force1100KN2200KN3200KN500KNBending Length3200mm4100mm4100mm2000mmThroat Depth400mm400mm400mm320mmOpen Height470mm470mm520mm440mmStroke0-600mm0-600mm0-600mm0-500mmPositioning Accuracy±0.05mm±0.05mm±0.05mm±0.05mmFast Fall200mm/s180mm/s130mm/s200mm/sY-axis Speed Bend10mm/s10mm/s10mm/s10mm/sReturn150mm/s140mm/s110mm/s160mm/sCapacity of Oil Tank300L400L500L160LMachine Weight9T13T21.5T4.3TCertificationsCompany ProfileHSG LASER CO.,LTDHSG Laser, founded in 2006 as a hi-tech enterprise focusing on R&D, production and sales of laser equipment, is dedicated to serve global customers with intelligent metal forming solutions.After Sales ServiceHSG Customer Service Policy The HSG customer service team is currently equipped with more than 200 professional employees, including pre-sale services, in-sale services, after-sales service, customer training and other professional teams, from technical process consulting, visits and sample inspection, customer site
