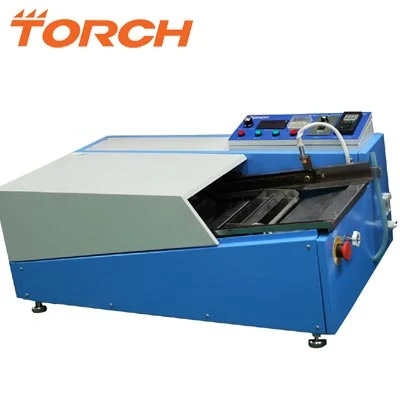

SMT Small Desktop Wave Soldering Machine Tin Soldering Machine Tb680

SMT Small Desktop Wave Soldering Machine Tin soldering Machine Tb680  IntroductionDesk wave soldering machine TB680 has been developed by Torch, It is the first equipment in small type wave soldering field. TB680 is suitable for research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. It is a desk-type, taking up small room, with multi-functions, energy-saving and high efficiency. The operation is easy and especially suitable for small and middle batch production.  Function1. Flux Flux parts are made of air pump, air tube, pin valve, filter, froth tube and flux box. 2. Preheating It is made by melt board with resistor to provide heat for PCB. 3. Soldering It is made by tin pot, heating board, wave pump and tin.4. Electrical ControllingWith modular structure, transmission speed, solder temperature, preheating time and others can be adjusted and controlled.5. Exhaust UnitIt is made of cover,air fan, air cover and air tube. All exhaust generated in soldering will be eliminated.6. Convection UnitIt is made of chain, rail, drive and pallet. PCB will be sent in flux unit, preheating unit and soldering unit by convection unit. Main Technology Parameters:ModelTB680The max power consumption3KwSolder pot capacity37KgPCB width (L×W)(mm)200 X 270mm (Max)Temperature range200~300Preheating temperature90~130 degreeWave height adjust range3~ 8mmMelt time60minSpray work modefrothPower supply220v 50HzConveyor speed0.5~ 2m /min CTVDimension840 X 540 X 380mmWeight70Kg/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
