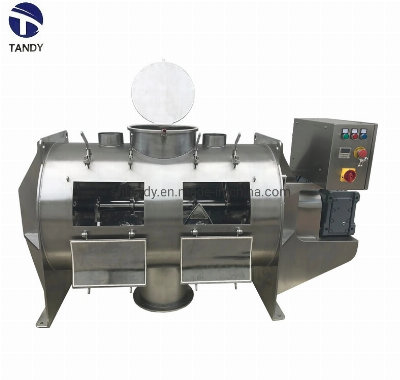

Horizontal Plough Shear Mixer Powder Mixing Machine

Horizontal Plough Shear Mixer Powder Mixing MachineReference parameter:Model no.Effectivevolume(L)LoadingcoefficientPower(KW)Rotate speed(R/min)Size(mm)Weight(kg)TDP-2002000.6-0.84.0531850X860X1100420TDP-3003000.6-0.85.5531900X900X1200680TDP-5005000.6-0.87.5452050X1050X1250890TDP-100010000.6-0.811.0452500X1200X13501360TDP-150015000.6-0.815.0392950X1350X14001780TDP-200020000.6-0.818.5393100X1500X16502260TDP-300030000.6-0.830.0313650X1680X19203150Pls feel free to contact us if you need more technical parameters!FAQ:1. Manufacturer or trading company :   Manufacturer2.  Location :     Songjiang district , Shanghai3.  Selling markets:   Euope , American , Australia , Asia , Africa4.  Customized:     Available for customized designs5.  Delivery time:   15 - 30days6.  Warranty period:    1 yearFeatures of plough  mixing  machine :Plough  shear  mixer  is  formed  circular  cylinder  barred, drive  mechanism, plough shears ,discharging vent and  other devices ; plough share  inside  mixer is  rotating  with  main axial  so  that  the materials along  with  the  cylinder  cantilever  radial  circumferential  turbulence, at the  same  time  the radial material  through  shear  group, was  scattered  by  the  high  speed  sheer ,constant  alternation, compound, the materials  is  mixed  uniformity in  short  time.1. It is high speed to the materials for  cutting , crushing  ,blending.2. It  is  with  attractive  appearance  under  advance  processing  technology , there is  smaller  gap  between plough  shear  and  barrel .3. Main shaft seal with PETP seal  and  air -purged  seal .4. It can be added  heating  or cooling  jacket  device  if  necessary .More picture to show:Our factory:Our exhibition:Our service: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
