Vertical turbine mixer coagulation regulating anaerobic hydrolysis acidification nitrification and denitrification tank

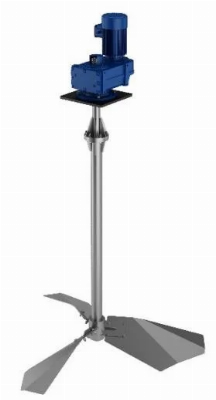

Vertical turbine mixerTurbine mixer suitable for vertical installationProduct applicationIt is mainly used in the occasions where two-phase solid-liquid or three-phase solid-liquid-gas mixing is required in environmental protection, chemical industry, energy, light power and other industries. It is especially suitable for coagulation tank, regulating tank, anaerobic tank, hydrolysis acidification tank, nitrification tank and denitrification tank in sewage treatment process. Product featuresThe service area is large, the water area is deep, the circulating flow is large, the flow rate is high (the average flow rate is up to 0.3m / s), the supporting power is small (only 2.5-3w per cubic meter), and the operation cost is low.The underwater working part has no hidden trouble, and the dry installation of the reduction motor is convenient for maintenance and low cost.invades the water, resulting in the damage of the motor.It can operate continuously or intermittently, and can also work normally when the water level changes.Three dimensional circulation is generated, the water table is soft, and there is no mixing dead angle and sludge settlement.It can be installed without cleaning the tank, and maintenance can be carried out without cleaning the tankTechnical dataPower Supply: Three-phase 380V 50HZWorking mode: S1Protection grade: IP55Insulation class: Class FEnvironment temperature: -10--40ºCDensity: Less than 1.05×103kg/m3PH value:5-9  Performance parameter                                  Model Impeller diameter(mm)Speed(r/min)Motor power(kw) Service area(m)Weight(kg)VT≤1000≤30≤1.12-4≤140 ≤1500≤30≤1.53-6≤180 ≤2000≤30≤2.24-7≤250 ≤2500≤20≤35-8≤500 ≤3000≤20≤46-10≤600 ≤3500≤20≤5.57-12≤700 ≤4000≤20≤7.58-14≤800 ≤4500≤20≤1512-20≤1200Below are products we produce:1.Pump series:1>..Submersible pumps;2>.Surface sewage pump;3>.Surface clean water pump;4>.Acid and alkali resistant pump2.Blower series;3.Mixers/Agitators:4.Solid-liquid separation series;5.Oxygen charging series As a real manufacturer for pumps,mixers, blowers,separate machines, we have been in this industry for more than 10 years.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
