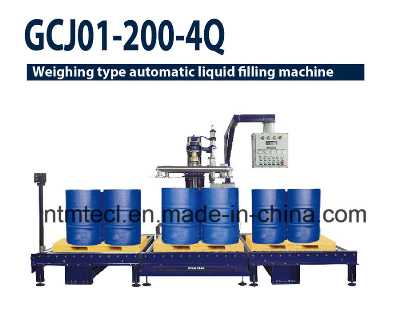

Automatic 200kg Drum Filling Machine for Chemcial, Paint, Coaing, Glue, Adhesive

Main featuresThis filling machine is suitable for filling of one ton barrels or four 200kg barrels with small opening. The position of filling head is controlled manually. The top filling type or bottom filling type can be choosed. Barrels are transported by forklift. Main applicationCoating, paint, ink, glue, curing agent, solvent, chemicals, detergent, pesticide, medicine, lubrication oil and all kinds of flowing liquid. Main functionsSuitable for one tone barrels or four 200lg barrel with small opening.Barrels are transported by forkliftThe position of filling head is controlled by manuallyInstalled with ventilation interface to meet the requirement of environmental protection.Anti-splash filling head.II is top filling type, III is bottom filling type.10 groups of prescription can be set and stored in machine.Filling fast/slow two steps of filling speed.Emergent stop/break/barrel moves, twice protection.Balance exceeding automatic alarm.Barrel with automatic material supply control.Explosion proof grade; EXDIIBT6. Main technical parametersFilling scope≤1500kgPower sourceAC380V ±1050HZDivision value100kgAir source0.5MpaFiling accuracy≤±0.2kgThe length1.5m×3Filling speed(200kg)40-60barrels/hourPower0.55kw×3Barrel Size≤¢600×h930Filling locations1/4 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
