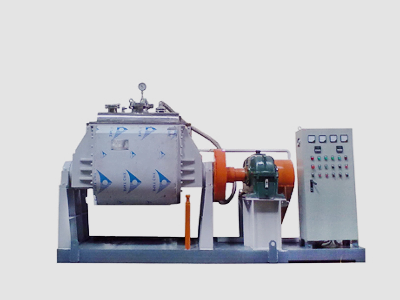

Special Sealing Structure Liquid Silicone Kneader Ink Making Machine

Detailed Photos  Product Description1). Kneading machine does very well in mixing, kneading, crushing and dispersing for high-viscosity liquid materials, with no dead point.  2). Two sigma or Z-type blades. 3). Equipped with inverter for frequency control. 4). Vacuum and high pressure are available. 5). The cylinder is opened hydraulically.  6). Discharge mode: Hydraulic tilting, Bottom pumping,or Screwing. 7). With jacket outside of the cylinder, for heating or cooling. 8). Heating mode: Hot oil, Electric or Steam. 9). All the parts that contact with material are made of stainless steel.   Model Chamber Volum(L)Drive motor power(KW)Mixing Speed (rpm) Discharge mode HeatingFull volumeFeeding amountPaddle fast / slow paddle Optional parametersOptional parameters NHZ-5532.2-475/50Manual / Hydraulic tiltingRunning HotoilElectrical heatingPressure SteamNHZ-2020123-5.563/42NHZ-5050304-7.563/42NHZ-100100605.5-7.543/29NHZ-2002001207.5-1543/29Hydraulic tiltingThe bottom pumpingScrew extrudingNHZ-30030018011-18.543/29NHZ-50050030018.5-3043/29NHZ-1000100060022-5532/22NHZ-1500150090030-9032/22NHZ-20002000120045-11032/22NHZ-30003000 1800 55-130 33/22 Remarks:1,Temperature range: 0-300°,2, Pressure range:-0.1-0.6MPa,3,Inverter for frequency control if necessory.Chewing gum base kneading, rubber base kneading, DOW Corning, sealant,Silicone sealant, adhesive, ink, dope, pigment, dye, carbon, CMC, cosmetic, foodstuff, battery, medicine, plastic and other viscosity fluid etc. Vacuum kneading machines./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
