Professional Manufacturer Industrial Continuous Mixer Baking Powder Mixing Ploughshare Mixer

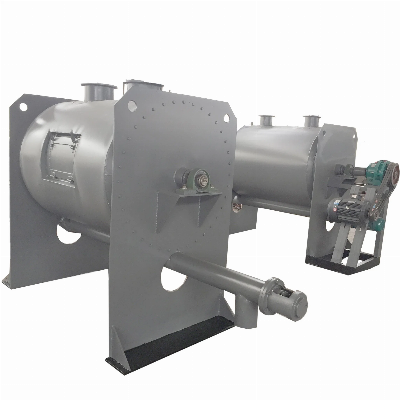

Professional Manufacturer Industrial Continuous Mixer Baking Powder Mixing Ploughshare MixerPlough  shear  mixer  is  formed  circular  cylinder  barred, drive mechanism, plough shears ,discharging vent and  other devices ; plough share  inside  mixer is  rotating  with  main axial  so  that  the materials along with  the  cylinder  cantilever  radial  circumferential  turbulence, at the  same  time  the radial material  through shear  group, was  scattered  by  the  high  speed  sheer ,constant alternation, compound, the materials  is mixed  uniformity in  short  time.Features of plough  mixing  machine :1. It is high speed to the materials for  cutting , crushing  ,blending.2. It  is  with  attractive  appearance  under  advance  processing  technology , there is  smaller gap between plough  shear  and  barrel .3. Main shaft seal with PETP seal  and  air -purged  seal .4. It can be added  heating  or cooling  jacket  device  if  necessary Plough Mixer Parameters ModelTotal VolumeEffective VolumeMotor Power(KW)KDH-0.1100L40-60L3KDH-0.3300L120-180L4KDH-0.5500L200L-300L7.5KDH-11000L400L-600L11KDH-1.51500L600L-900L15KDH-22000L800L-1200L18.5KDH-33000L1200L-1800L18.5KDH-44000L1600L-2400L22KDH-66000L2400L-3600L30KDH-88000L3200L-4800L45KDH-1010000L4000L-6000L55KDH-1212000L4800L-7200L55KDH-1515000L6000L-9000L75KDH-2020000L8000L-12000L120Optional Features:1.Carbon Steel, Stainless Steel 304, Stainless Steel 316L2.Different type of plough according to material characteristics3.Internal pressure4.Sanitary type construction5.Flap valve, butterfly valve, slide gate valve, ball valve6.Horsepower to suit higher density materials7.Explosion-proof motors8.Controls such as variable frequency drives, motor starters and operator stations are available9.Spray nozzles for liquid introduction10.Jacket for heating or cooling  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
