Continuous No-Bake Mobile Single Arm Resin Sand Mixer Factory

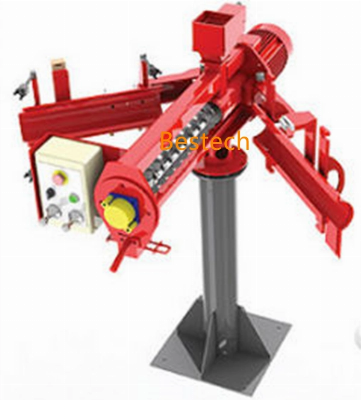

S24 series single arms sand mixer machine introduction:The single arm resin sand mixer has short structure and small working area.It is only suitable for small sand box molding and small casting volume.Electric adopts imported PLC control, stable and reliable work, to achieve automatic production.Feature foundry resin sand mixer:1.agglomerant system adopt electric variable diaphragm pump,light weight,compact size,the flow is stable and reliable.2.sand mixed system of uniform,effectively ensure the shape(core system) quality.3.sand short time,without a head,tail sand,down the back of clean material.wide-open cage-type wall of sand up for leaf clean-up or adjustment,to facilitate the operation and maintenance.4. mixer entrance need to be configured according to the production of the proportion of old and new sand regulator,accurate control of the old and the new volume of sand and the proportion of sand,sand transfer process can be a good proportion of pre-selection and change.Description foundry resin sand mixer:1. Mixing outputs range from 3T per hour to 12T per hour, ideal for smaller foundries and catering for a number of individual customer requirements.2. The split tube mixing trough and removable shaft ensure the system is easily maintained for greater longevity.3. The pivotal mixer can be supplied with either the BASIC panel which excludes a PLC and has manually adjustable pumps. Or we can offer the PLUS panel which includes a PLC and all of the latest features automatic modes.S24 series single arms continuous sand mixer technical parameter:ModelS242S243S245S248S2410S2412Productivity (t/h)23581012Diameter (mm)Φ175Φ175Φ203Φ219Φ219Φ225 Rotation rate (r/min)940960960960960960 Motor power (kw)2.2345.57.57.5 Gyration radius (mm)R850R1500R2000R2000R2000R2000Curing agent for pump flow (l/h)49494975101120Binder quantitative accuracy
