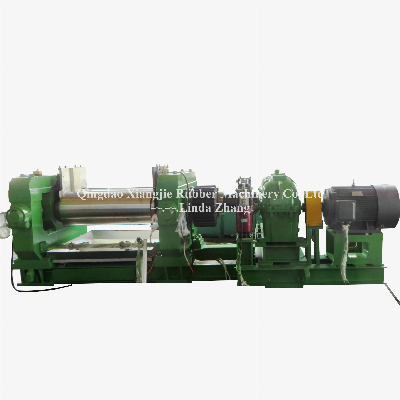

Automatic Rubber Mixing Mill for Rubber Sheet

Rubber Open Mixing Mill Product DescriptionThe function of open mixing mill1.The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavit   is processed to make temperature well proportioned on the roll surface.2. The machine is equipped with an overload protection device to prevent the main components from being damaged.3. The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.4. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.5. The base frame is a whole framework, which is convenient for installation.  6. Stock bender for direct rubber sheet and knife to cut as your need to assemble.7. Auto-lubrication sysytem for greese or oil and match bearing bush.Parameters/version    XK-160.             XK-250.            XK-400             XK-450.            XK-560Roll diameter                160                    250.                   400                   450                  560Roll length                    320                    620                    1000                 1200                1530Front roll surfacespeed(m/min)              8.89                   15.3                    18.65                 24.32              27.72  Friction ratio               1:1.35                 1:1.1                   1:1.27               1:1.27              1:1.2Max. nip                        4                        8                          10                    15                     15Feeding capacity per   1-2                   10-15                   18-35                25-50               35-50Power(kw)                    5.5                    18.5                       37                     55                   90Size( l*w*h) (mm) 1160*920*1370  3120*1322*1500 4350*1850*1780 5670*2390*1670 Weight(kg)                1000                    4000                     7600               12000                23000Details photoMain technical parameter  Parameters/versionXK-160XK-250XK-400XK-450XK-560Roll diameter160250400450560Roll length320620100012001530Front roll surface speed(m/min)8.8915.318.65         24.3227.72Friction ratio1:1.351:1.11:1.271:1.271:1.2Max. nip48101515Feeding capacity per1-210-1518-3525-5035-50Power(kw)5.518.5375590Size( l*w*h) (mm)1160*920*13703120*1322*15004350*1850*17805670*2390*16705845*2284*1978Weight(kg)1000400076001200023000Our company workshopCustomer PhotosLoading container & shippingGuarantee & After-sale service:♥One year guarantee for whole machines ♥24 hours technical support by email ♥Calling or door - to -door service. ♥Provide videos for each machine. we will send one engineer to your factory to guide installation and test running the production line, until you can operate themachine skilled /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
