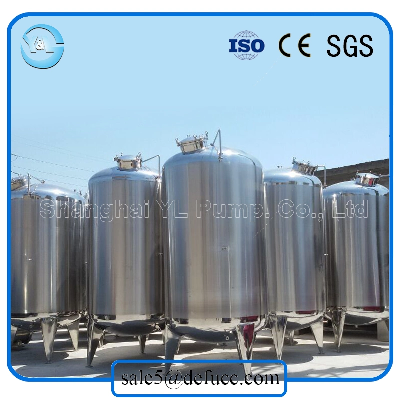

High Quality Sanitary Liquid Beverage Stainless Steel Blending Tanks

Main features of High Quality Sanitary liquid beverage stainless steel blending tanks  Product Name:Sanitary liquid beverage stainless steel blending tanksDescription:Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosmetics and pharmaceutical industriesHeating methodBy electricity (oils or water), by steam, by gasMaterial:SS304/SS316L/1.4301/1.4404Jacket: dimple jacketInsulation layer: PUMade as per customers' requestConfiguration1. Manhole2. CIP spraying ball3. Adjusting feet4. Sample valve5. Temperature gauge6. Pressure gauge7. Level gauge8. Breather9. Made as per customers' request Capacity:500L-20000LAgitator Type:With agitator or notMechanical seal:SIC/SiC/EPDM(Standard)Agitator power:0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …15KWSealing option:Sanitary single mechanical seal/Double mechanical seal with cooling systemVoltage:220V, 380V, 415V, 480V, 575V/50,60HzMotor brand:ABB, SEW, Siemens, LOCALSurface finish:Inner mirror polish and outside matte, drawing surface pr mirror polishAvailable connection:Clamp, Thread, FlangeAvailable standard:DIN, SMS, 3A, RJT, ISO/IDFOperated:ElectricApplication scope: Dairy, food, beverage, pharmacy, cosmetic, etcPackaging Details:Plywood case or customized. Delivery details:Usually within 20 days after receiving T/T down payment Technical parameters  Effective volumeDimension of tankTotal heightInsulated layerDiameter of inlet&outletElectrical powerBlending speedLmmmmmmmmKwR/min500840*1000275050380.55Normal speed used: 35,43,60,72. Variable speed is also available600920*1000285050380.55700990*1000285050380.55800950*1220300050380.559001010*1220300050380.5510001060*1220315050510.7515001160*1500335050510.7520001340*1500341050511.130001410*2000400050511.540001620*2000425050631.550001810*2000430050632.260001980*2000455050632.270002060*2440500050632.280002060*244050005063390002180*2440505050633100002300*2440505050763120002270*3000560050764150002530*3000570050764200002640*3660640050765.5Above dates are only for reference. They can be made according to customer's' request. Detailed is subject to drawing supplied.Technical drawingYour detailed requirements will be approved by drawing before your order, so don't worry about the machine you get is not right one.Production processTanks ready to shipContact us  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
