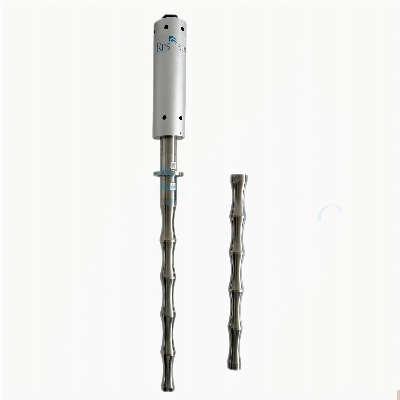

Industrial 3000W Ultrasonic Stirring Mixing Homogenizer

Industrial 3000w Ultrasonic Stirring Mixing HomogenizerModelSONO20-1000SONO20-2000SONO15-3000SONO20-3000Frequency20±0.5 KHz20±0.5 KHz15±0.5 KHz20±0.5 KHzPower1000 W2000 W3000 W3000 WVoltage220/110V220/110V220/110V220/110VTemperature300 ºC300 ºC300 ºC300 ºCPressure35 MPa35 MPa35 MPa35 MPaIntensity of sound20 W/cm²40 W/cm²60 W/cm²60 W/cm²Max Capacity10 L/Min15 L/Min20 L/Min20 L/MinTip Head MaterialTitanium AlloyTitanium AlloyTitanium AlloyTitanium AlloyThe ultrasonic cavitation effect of ultrasonic mixing equipment means that under the action of strong ultrasonic waves, a large number of bubbles will be generated in the liquid, and the small bubbles will gradually grow and increase with the ultrasonic vibration, and then suddenly burst and split, and the split bubbles will continue to grow and burst.Ultrasonic emulsification equipment uses strong ultrasonic waves to crush insoluble solids (or other liquids) in liquids into particles and fully mix them with surrounding liquids to form emulsions. The physical mechanism for crushing insoluble solids (or liquids) is generally considered to be ultrasonic cavitation. The ultrasonic cavitation effect means that under the action of strong ultrasonic waves, a large number of bubbles will be generated in the liquid, and the small bubbles will gradually grow and increase with the ultrasonic vibration, and then suddenly burst and split, and the split bubbles will continue to grow and burst. When these small bubbles collapse rapidly, high temperature and high pressure are generated in the bubble, and because the liquid around the bubble rushes into the bubble at high speed, a strong local shock wave is generated in the liquid near the bubble, and local high temperature and high pressure are also formed, resulting in ultrasonic crushing and ultrasonic emulsification.Product principle     Ultrasonic emulsification equipment consists of two parts: ultrasonic emulsification components and ultrasonic drive system (ultrasonic generator). Ultrasonic emulsification components: mainly include ultrasonic transducers, ultrasonic horns, and ultrasonic tool heads to generate ultrasonic vibrations and emit this vibration energy into the liquid.1. Ultrasonic drive system: Generate high-frequency high-power current to drive ultrasonic vibration components to work. The power of the ultrasonic generator is adjustable to suit different working conditions. A timing controller can also be integrated in the generator as needed to set and control the ultrasonic vibration time and intermittent time.2. Ultrasonic demulsification equipment consists of two parts: ultrasonic demulsification system and ultrasonic drive system (ultrasonic generator).Ultrasonic demulsification equipment mainly includes ultrasonic transducers, ultrasonic horns, and ultrasonic tool heads to generate ultrasonic vibrations and emit this vibration energy into the liquid.3. The ultrasonic transducer converts the input electrical energy into mechanical energy. The form of expression is that the transducer moves back and forth in the longitudinal direction, and the amplitude is generally several microns.4. Ultrasonic horn Because the amplitude generated by the ultrasonic transducer is not enough, it is necessary to connect the ultrasonic horn to amplify the amplitude according to the design, isolate the reaction solution and the ultrasonic transducer, and also play the role of fixing the entire ultrasonic vibration equipment.5. The ultrasonic tool head is connected with the horn, and the horn transmits the ultrasonic energy vibration to the tool head, and then the tool head emits the ultrasonic energy into the chemical reaction liquid.6. The ultrasonic generator generates high-frequency and high-power current to drive the ultrasonic vibration components to work. The power of the ultrasonic generator is adjustable to suit different working conditions. A timing controller can also be integrated in the generator as needed to set and control the ultrasonic vibration time and intermittent time.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
