Tire/Tyre Recycling Rubber Powder Making Machine Tyre Recycle Machine Rubber Machine

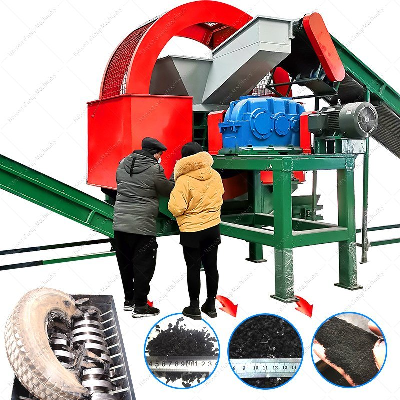

 Tire/tyre Recycling Rubber Powder Making Machine tyre recycle machine rubber Machine  PLC Fully-automatic Production Line1.Conveyor-Transport the tire to the shredder; 2.Double shaft shredder---Shears the tire into 5-10 cm blocks;3.Recirculation system---To control the size of shreds going to the raspers;4.Raspers-Reduce the shreds into 15-20 mm chips and liberates steel from the rubber;5.Over belt magnet--Separation of liberated steel from the rubber chips;6.Vibratory feeder--Transports the rubber chips;7.Granulator--Size reduction of the chips to 1-4 mm granules and liberates the textile fraction to air flow separation.8.Vibratory screen-Sorts the granules by size and removes the majority of textile;9.Classifer-Removal of remaining textile; Drum magnet-Removal of remaining steel fines;10.Central de-dusting unit--Remove dust and fines from the system and filter the air before returning it to the atmosphere.Flow chart of tire recycling (Fully-automatic Production Line): Waste tire - Tire debeader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder Flow chart of semi automatic tire recycling line Whole tire--tire circle cutter--tire strip cutter--tire slice cutter--rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder1.Provide the floor space and size required for recycling machine.2.Provide the complete recycling line layout and its 3D drawing3.After machine reach the customer's working site, We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and trainingTIRE SHREDDER: Used to shred the whole tires into rubber blocks, NO NEED DRAW OUT THE WIRES FROM TIRE BEAD, NO NEED CUT THE TIRES TO RUBBER PIECES. CAN BE FEED IN TIRE SHREDDER DIRECTLY.ModelInput sizeOutput sizeCapacity MotorWeightTS-800800mm50*50mm1-2t/h2*22kw8tTS-12001200mm60*60mm3-5t/h2*37kw14tTS-16001600mm50-150mm6-8t/h2*45kw18tTS-18001800mm50-150mm7-10t/h2*55kw23tRASPER: It can process and produce 10-30mm wire free chips, the steel wire will be separated by rasper and attracted by magnet.It is specially designed to remove wire steel from tire, and process the rubber chips from tire shredder into wire-free rubber mulch 10-30mm.The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.ModelR-315R-132R-90R75R55R45Capacity3-6t/h1.5-3t/h1-1.5t/h700kg-1t/h500-700kg/h300-500kg/hPoder315kw132kw90kw75kw55kw45kwWeight2400kg6100kg4200kg3500kg1850kg1700kgVoltageAs requestSize10-30mmGRANULATOR: is designed to grind the rubber mulch from the rasper into small granules as fine as 1mm. The granules are screened and re-circulated until the desired size is reached. ModelG-90G-45G-37Power90kw45kw37kwCapacity800-1500kg/h500-800kg/h300-500kg/hFinal size1-6mm1-6mm1-6mmWeight5600mm3300mm2950mm4. MillerIt is designed to process the rubber granule into fine rubber powder 30-120mesh as request. With advanced technology, automatic feeding system.Customize your solution If you need rubber granule with a mesh size
