Fipfg Technology/Polyurethane Dispensing Foaming Machine Solution

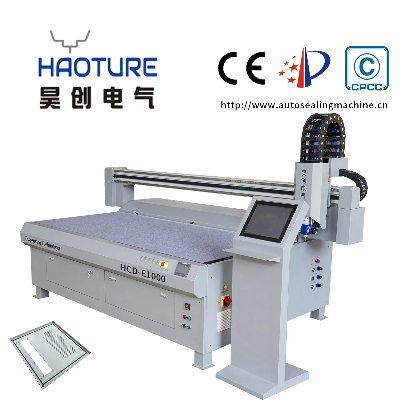

  Product DescriptionHCD-E1000 Polyurethane Hybrid Foam Sealing Machine HCD-E1000 is widely used in automobiles, cabinets/cabinets, air filters, air conditioning purification equipment, packaging, electronic components, lamps, new energy and other industries.featureMaterial: PUStroke: 2350 × 1200 × 200mm/300mmWorkbench: 500*500*1500mm (length*width*height)Finished gasket width 6-30mmConfiguration:--Mobile operation console-- Mixing and dispensing device--Mechanical frame--Electrical control panel  - oil storage tank--Integrated workbenchoptions:--Automatic material filling stationMain technique. dataConfiguration:--Mobile operation console-- Mixing and dispensing device--Mechanical frame--Electrical control panel  - oil storage tank--Integrated workbenchoptions:--Automatic material filling stationMain technique. dataItemsParameters/BrandmachinemodelHCD-E1000(standard)overall space3270*1870*1900mm (L*W*H)working stroke2350 × 1200 × 200mm/300mm weight1500 KGSchemical materialnamepolyurethanecomponents2 components(A+B)system/operationoperating systemSYNTEC CNC control systeminterfacetouch screen operating methodtouch screen/keyboard/ buttonscontrollerSYNTECscreen size15"mixing headmodelD100gasket width6-30mmclean methodhigh pressure water clean+ air-blow cleaningmixing ratio(A:B)1∶1-10∶1output1-4 g/srepeated position precison±0.05mmair pressure5 barmetering pumpbrandCREDmodelA-3.0T  B-0.6Tmechanical frametype3-aix linear mechanical armspeed0-250mm/srail brandHIWIN (Taiwan)/ABBALinearbelt brandChina brandservo motorPanasonic/HCFAspeed reducerChina brandstorage tanktypeair pressure tankvolumeA tank-50L B tank-24Lautomatic stirring A tank:YES   B tank: NOglue refillmanualair refillautomaticautomatic refill stationoptionalworking tablematerialaluminum profilessizeall-in-oneelectric powervoltage3X380Vpowder3.5kwairdry compressed air≥5barwater clean tap water- Mixing Chamber Model: D1001. Patented mixing chamber head with independent intellectual property rights;2. high pressure water purification and air purification;3. modular lightweight structure design;4. high strength aluminum alloy and stainless steel structure;5. Built-in glue circulation system to ensure effective isolation of glue and compressed air, increasing the reliability of glue and storage life.6. multi-stage glue injection, multi-point cavity flushing, flushing cleaner and more efficient, increasing the continuous use.7. Segmented combination of valve body, fast action response, glue does not leak, low maintenance costs.8. Standard mixing chamber thermostatic cooling water circulation system, matching the special needs of the glue, to effectively ensure the quality of the rubber strip.9. Stirring bar speed is adjustable, special design makes the glue mix very evenly.10. stir bar direction movement control nozzle locking function- control system:SYNTEC1,Adopting Taiwan advanced control system and self-developed control program. Display gluing image, simulate operationThe display of gluing image and the simulation of operation track can reduce the misoperation.2,Support module editing, demonstration programming, G code programming, CAD software programming. (Provide 7*24(7*24 hours programming service) easy to learn and easy to operate, stable and reliable, within one hour to learn to operate theEquipment.3,Human-machine interaction can set all kinds of parameters and can display all kinds of alarm information to realize rapid troubleshooting of equipment.The equipment can be quickly troubleshooted.4,Support the external exchange platform, automatic gluing, robot up and down the workpiece.5,Built-in Auto Cad software in vertical computer;6,USB port for transferring Auto Cad drawing to vertical computer;7,Set up standard picture library in the vertical computer;8, Wireless hand operation panel for programming teaching;-transmission mechanism: HIWIN (Taiwan)/ABBALinear1,Traveling mechanism is all driven by Panasonic Ho-servo motor, stable operation, stable reliability and high precision. 2,Transmission part: belt, guide rail, wear-resistant, high precision. -Measurement systems: CRED1,The use of high-precision special metering pump, servo motor plus precision reducer drive, to ensure the glue supplyStability.2,Monitor the pressure by pressure sensing technology, overpressure automatic alarm and emergency stop to protect the glue supply system.-thermostat:1,It consists of heating device and cooling device, which provides a reliable working environment for the equipment.environment, so that the glue is not subject to external influence, to ensure the stability of the glue after mixing.-storage tank1,Adopt stainless steel pressure tank, corrosion-resistant, beautiful and durable, 50L/24L capacity. 2,Lack of material alarm device, when the raw material is lower than the refilling level, man-machine interaction will indicate the refilling. The tank is equipped with a stirring and filtering function. 3,The glue tank is equipped with stirring and filtering f
