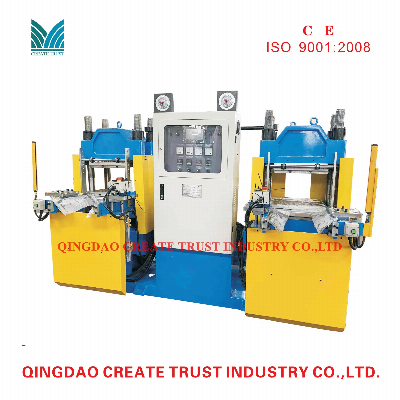

China Top Quality Rubber Vulcanizing Machine with Ce&ISO9001 Certification

Model No.: CX-1000BName : Rubber vulcanizing machine, Rubber vulcanizing pres,Rubber curing press,Plate vulcanizing press,Plate vulcanizing machine,Rubber hydraulic press.Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products. FEATURES :  1- Beam and platform :   Material:Q235 steel  Welded together as a whole part,Stewing fire treatment after weldment.   2 - Platen: Surface polishing:1.6μmm, depth of parallelism : ±0.05mm  Plate with Q235A or 45# Steel .  with insulating protection. 3-Frame: Material:Q235 steel,thickness:80mm,parallelism:±1.5mm  Weldment:submerged arc welding, VSR treatment after weldment 4-  Hydraulic parts are from YUKEN, Piston with material Chilled cast iron HS 68-75 hardness , 5-  Hydraulic Cylinder Cast steel ZG-270-500,chrome plated . Seal is from NOK,Japan. 6-  PLC  SIMENS , and all electric parts we use brand Schneider. 7- Safety system:  completely follow CE standards:   double hand starting,light curtains,thermometer alarm: install the thermometer with alarm system, when the temperature alarm, the machine will stop automaticly. PLC alarm : when something wrong with the machine, the touch screen will alarm and the machine will stop.  Main parameter :    ModelCX-100ACX-100BCX-160CX-200CX-250CX-300CX-400CX-500  Mold-locking force(KN)10001000160020002500300040005000  Max. working pressure(Mpa)2121232121212121Heating plate size(mm)450*450500*500520×540520X540or600×600600×600700×700800×8001000×1000Clamping stroke (mm)250250250250300300400500 Max.distance of two thermo-plate(mm)400400420420430400700700  Motor power(kw)4+44+45.5+5.55.5+5.55.5+5.57.5+7.511+1115+15  Below photo is our CNC working shop for the processing of parts for vulcanizing machine Below is our stock room for the machineBelow is the factory who use our machineService of us :The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.All we do is for longterm cooperation , " CREATE TURST" !  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
