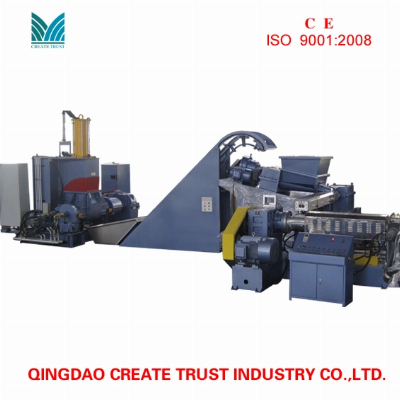

New Advanced Technology PE/PP/LLDPE/ABS/Carbon Black Masterbatch Granulating Machine

Name: New advanced technology PE/PP/LLDPE/ABS/Carbon black Masterbatch granulating machine,Masterbacth Granulation Production Line,Masterbatch Granulation Production Line,Masterbatch Pelletizing Line,Granulation Machine,GranulatorModel: CX180AFEATURES:Plastic kneader (banbury mixer):  Specially designed for plastic mixing, with heating system. rotor is stellite welded,after polishing and quenching. this will make rotor and chamber high wear-resistant.The reducer are hardened gear teeth,no noise,longlife us .Forced feeding deviceContaction with single screw is Harvard structurePower of motor is 7.5 KW,with INVT frequency converter.Double screw for material feeding,this is best technical now .Contaction with single screw is Harvard structurePlastic extruder  Model numberCX-180AScrew diameterφ180 mmLength-diameter ratio18:1Motor powder75 KWFrequency motorINVT brand Screw is made by nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.75mm, surface is chrome plated,high wear-resistant.Barrel material is nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Outer with stainless steel cover .  Heating of barrel is made by Cast aluminum heater.Oil circle cooling system : cooling water pump is 0.55kw,automatic Water control solenoid valve. All material for water bank,pump and pipes are made by stainless steel. Pipes with cover to protect and easy maintaince 0.75m3 condenser- 2 sets Hydraulic screen changer : fixed between the barrel and head,which can strainer the impurity during working, sametime each exchanged and clean.Hot cutting head : with temperature testing device and pressure testing.Air cooling mould surface hot cutting system: Air cooling mould surface hot cutting pelletizer. Motor power 1.5KW,one set of blade,four pieces.INVT frequency converter.Diced cover is made by stainless steel,with brake deviceFirst grade cyclone seperator: diameter is 800 mm. The fas is 5.5 kwSecond grade cyclone sperator : diameter is 800mm, the fans is 4 kwLong svibrating screen, one set. Power is 0.55kw. Big hole size is 8mm,smaller is 0.5 mm diameter.Air blow bin : 1 m3 capacity, power of fan is 4 kw.The Interlock Control System: we use intelligent instrument,PID parameter setting and double channel. The head of extruder with testing device for temperature and pressure. All the data will be shown and protection the temperature and pressure.The electric parts we used is DELIXI brand,contactor is from SIMENS.SERVICE :We can design whole line machine for EVA sheet production. We also provide techncial for EVA sheet production, our engineer have rich experiences in this area. we go to your facotry to help intallation and guide the worker .All we do is for longterm cooperation , " CREATE TURST" !  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
