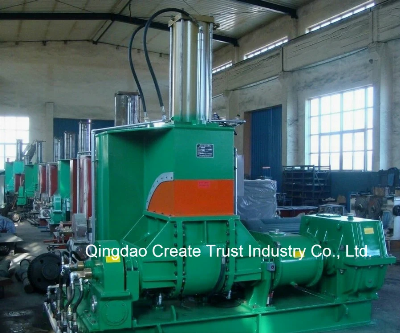

Hot Sale Rubber Kneader with Ce ISO9001 Certification

Model number : X(S)N35Name : Rubber kneader, Rubber banbury mixer,Rubber (plastic) dispersion mixer/ rubber kneader   Usage: Propose usable for rubber or plastic plasticizing and mixing or rubber and plastic blending. FEATURES 1. Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled so that the productivity is high and the quality is good and stable. 2. Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about homogeneous distribution of the stock. 3. All the parts in contact with stock are plated with hard chrome and polished. The rotor wings are built up by welding with the carbide alloy to resist abrasion and corrosion. 4.All the parts in contact with stock are of the jacket design where water/steam/medium oil is lead through to provide cooling or heating and can meet different requirements for the rubber or plastic mixing process. 5. Stock is fed through the rear door of the frame work (or other port) and discharged by titling the mixing chamber forwarder by 1400 , such a design makes it possible to arrange the upstream and the downstream process steps in a line and facilitates stock clolor changing and mixing chamber cleaning . 6. Programmable logic controllers (PLC) are used for the electrical control system. It provides the perfect and reliable control ,detection&alarm and the necessary safty interlocking fuctions and hase the serial interfaces for connection to the net work. TypeX(S)N-10X32X(S)N-20X34X(S)N-35X30X(S)N-55X30X(S)N-75X30X(S)N-110X30Pinching total cubageL254575125175250Dense smelting total cubageL1020355575110Main motor powerKW22225575110185Overturn motor powerKW1.11.52.22.23.07.5Overturn angle0140140140140140140Rotate speed of rotor oxis(front/back))r/min32/2534/2830/24.530/24.530/24.530/24.5Pressure of compressing airMpa0.5~0.80.6~0.80.6~0.80.6~0.80.6~0.80.6~0.8Pressure of cooling waterMpa0.2~0.4.0.2~0.4.0.2~0.40.2~0.40.2~0.40.2~0.4Pressure of heating vaporMpa0.5~0.80.5~0.80.5~0.80.5~0.80.5~0.80.5~0.8Overall size (L x W x H)mm2640x1650x23503100x1300x24503200x1900x29453300x1900x29003760x2143x31354075x2712x3580Weightkg33004500650078001023014970Service of us:The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.All we do is for longterm cooperation , " CREATE TURST" !
