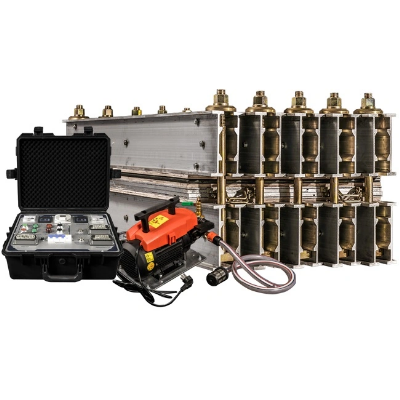

Hot Rubber Belt Vulcanising Equipment with Rapid Water Cooled System

Product DescriptionUsageFabirc rubber beltsMax belt width650-3000mmPressure fluidHydraulic oilPressure100P.S.I(7kg/cm²)/200P.S.I(14kg/cm²)Vulcanizing temperatureVulcanizing temperature:145ºC (adjustable 0~160ºC)Cooling systemPressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)Degree of the heating platen17/20/22° or optional.Power voltage220V,380V,400V or as your optionalVulcanizing temperature:145ºC (adjustable 0~200ºC)Temperature-rising time (from normal temp to vulcanizing temp): ≤50 mins(around 25~30 mins normally)Improved cooling system: using pressure pump for cooling:only 5mins (cooling from 145 to 75 degrees)FeatureSeries DSLQ II vulcanizer for rubber belt, is a technically advanced, improved,structurally compacted and easily used vulcanizer for jointing-up the rubber belts.Main componentsBecause our vulcanizing press are all customized as your optional,so plz When order or inquiry, pls offer below informaiton: When order or inquiry, pls offer below informaiton:1.Heating platen length(A=?)2.Belt max width(B=?)3.Working pressure100PSI / 200PSI4.Working voltage 380V/ 660V / 480V / 440V / 415V / 400V or 20VWhat kind of pressnormal type or 2pcs typeAluminum Frame (Spanner Bars):High quality aluminum, designed for any belt width or operating pressure (from EA up to E430)ModelBelt width(mm) Power(kw)   DimensionsWeight(kg)Single most important (L*W*H mm)ZLJ-650*8306509.51370*830*63043045ZLJ-650*100010.81370*1000*63050066ZLJ-800*83080011.21520*830*63053570ZLJ-800*100013.51520*1000*63057579ZLJ-1000*830100014.11720*830*63059582ZLJ-1000*100015.71720*1000*63062095ZLJ-1200*830120016.51920*830*71080096ZLJ-1200*100017.21920*1000*710870113ZLJ-1400*830140018.61930*830*760930107ZLJ-1400*100020.72120*1000*7601180132ZLJ-1600*830160021.52320*830*8001270120ZLJ-1600*100022.32320*1000*8001460146ZLJ-1800*830180023.32520*830*8501380137ZLJ-1800*100025.62520*1000*8501650164ZLJ-2000*830200027.22720*830*9501760154ZLJ-2000*1000302720*1000*9501860182ZLJ-2200*830220029.22920*830*9501860165ZLJ-2200*100034.12920*1000*9501970198Packaging & DeliveryEquipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized01) Q: Normal delivery time?A: We have table produce line, hot sale products normally HAVE STOCK. If customized, need about 15 working days02) Q: Will you test the machine before shipping?A: Yes, each machine, we will install and test before shipping. And testing pressure is higher than working pressure.03) Q: Can you print our logo or without any logo?A: It's no problem OEM. Before order, please send us the clear document of your logo, also the authorization paper to allow us to print your logo.04) Q: Whether can visit your workshop and to see how to process the machine?A: No problems, you are always welcomed to visit us, before order or before shipping.If need to see how to process the machines,please inform us what type machines you want to see, we will try to prepare the similar machines ready before you come.05) Q: What's the payment term?A:Normally we accept T/T 30% as deposit before production, pay the rest before delivery.We also accept VISA vis Credit Assurance, Paypal and L/C.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
