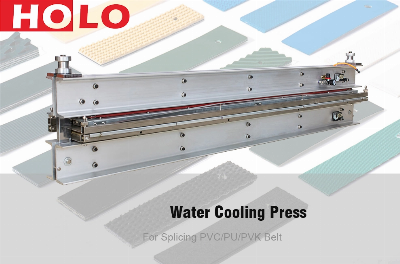

Water Cooling Splice Machine Belt Splicer

HoloBelt Machines Collocation SolutionsTotal solution is how we define Holobelt company. From design, engineering, manufacturing and training, Holo provides a total workshop solution to our customers helping to give them a competitive advantage in the marketplace.Machine Apperance & Specifications Model(Stainless Steel)PB-600PB-900PB-1100PB-1300PB-1600PB-2100Effective Length500mm800mm1000mm1200mm1500mm2000mmEffective Width150mm/200mmTotal Weight45kg65kg87kg87kg125kg196kgMax.Pressure2 BarMax.Temperature200 ºCPower2016W3024W3696W3300W5760W7560WModel(Aluminum Alloy)PC-2100PC-2600PC-3200PC-4200Effective Length2000mm2500mm3000mm4000mmEffective Width150mm/200mmTotal Weight196 kg250kg340kg430kgMax.Pressure2 BarMax.Temperature200 ºCPower7560W9360W11520W15120WApplication:PB Stainless steel water cooled hot press splicing machine/PC Aluminum alloy water cooled hot press splicing machineused for PVC belt, Polyurethane belt(PU belt) and Polyester Monofilament synthetic belting.  Features:1.Temperture Controller for upper and lower heating platen from Omron(Japan), Time Controller from CHNT.2.Laser silica gel hot platen, better than manual type.3.Temperature error (Up and bottom hot platen) is less than 3 ºC, heating more uniformer.Detailed Images:Packing&Delivery:We will use film to wrap the machine. then put into wooden box.The normal package is wooden box.(Fumigation treatment).Our Service:Pre-sales Service* Inquiry and consulting support. * Sample testing support. * Welcome view our Factory.After-sales*Teaching video to show how to work.*Machine introduction word to show how to work.Warranty*Machines are new (or unused) and the guarantee period will be given 12 months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality. Parts damaged because of mishandling and consumable parts are not covered by any warranty.*All our machines have CE certificates and passed ISO9001-2008Workshop Show: *Conveyor Belt Cutting Slitting Machine*Conveyor Belt Ply Separator Splitting Machine*Conveyor Belt Punching Finger Machine*Conveyor Belt cooled hot press splicing Machine*Conveyor Belt Welding Machine*Conveyor Belt Vulcansied Machine*PU PVC Rubber Conveyor Belt for sell  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
