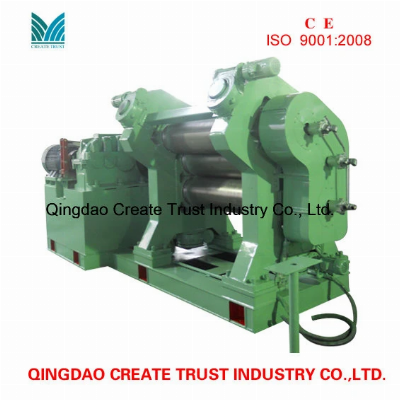

High Performance Three Rolls Rubber Calender Machine/Rubber Calender

Name:  Rubber calender,PVC calender, Rubber calendering machie,Rubber coating machine,Rubber sheeting machineModel No.: XY3I1400 Usage:  The calender can be used for rubber sheet or PVC sheet processing, tire sheet processing, coating ect. Roller number will be two roll,three roll, four roll ,five roll. Features for the rubber (or PVC) calender:  Hollow Roll : quantity can be 2,3,4 or 5 according to the technical of products.We can design drilled roll for you. and mirror polishing the surface.The roll material is Cast iron alloy (LTG-H), after quenching and precision processing, hardness HS:76.  Main bearing :  Dual-listed Tiaoxin spherical roller bearings  Base of machine :   is made by cast iron (FC30),after quenching,highest intension and precision, with lubrication hole.  seal-capping of base is made by aluminum ,no oil leakage in and outside.   Reducer:  Airtight leaching oil type,hardened gear reducer, Almost no noise,safty . Precision is six grade.  Lubrication pump:  power is 0.37 KW,by Oil automatic circle. With oil back window on the base of machine,you can check the oil for lubrication.  Emergency brake between motor and reducer, when overload ,the machine will stop automaticlyParameters below :  SpecificationRoller dia x length (mm)Mid-roller liner speed (m/min)Calendaring width(mm)XY-3I1120360x11207.5-22.5900XY-3L1120360x11202-20900XY-3I1400400x14008.8-26.391200XY-3I1450450x14502.5-251225XY-3F1600510x16002.5-251375XY-3F1520560x15201.5-151200XY-3F1830610x17304.5-451500XY-3F2540810x25403-302300XY-3F3400900x34000.54-5.43200XY-4F1120360x11207-21900XY-4F1400400x14008.8-26.391200XY-4Γ1600560x16003.5-301400  Auxiliary machine for calender can be cooling device, powder device,belt conveyor,take-up device ect .Below photo is the workshop our machine :Below is the factory who use our machine :Service of us The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.All we do is for longterm cooperation , " CREATE TURST" !  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
