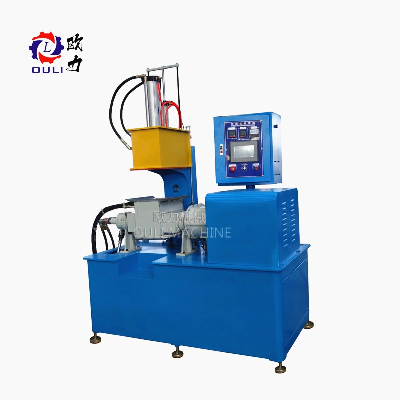

Ouli 3L Laboratory Internal Mixer, Lab Rubber Mixer

Ouli 3L Laboratory Internal Mixer,Lab Rubber Mixer   1. PRODUCT INTRODUCTION 1-1. Basic introduction of Ouli 3L Laboratory Internal Mixer,Lab Rubber Mixer.This lab rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs.Easy operation with convenient maintenance.Low labor intensity and low energy consumption.1-2. Parameter of Ouli 3L Laboratory Internal Mixer,Lab Rubber Mixer.Parameter/modelX(S)N-3Total volume (L)8Working volume (L)3Motor power (KW)7.5Tilting motor power (KW)0.55Tilting angle (°)140Rotor speed (r/min)32/25Pressure of compressed air (MPa)0.7-0.9Capacity of compressed air (m3/min)≥0.3Pressure of cooling water (MPa)0.2-0.4Weight (kg)1038   1-3. Details of Ouli 3L Laboratory Internal Mixer,Lab Rubber Mixer.   Mixing chamber:It consists of a "W" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls.   Thermal Resistance:There is a plug-in thermal resistance in middle section of the bottom of the chamber to be connected to electrical system to inspect and display the temperate.   Rotor:It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.  Cooling/heating system:A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the mixing chamber and the top ram.   Tilting mechanism:It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc...It is able to actuate the mixing chamber tilting by 140° Around the front rotors.   Dust sealing device:At the joint between the top of the mixing chamber and the cantilevered arm of the machine frame, the dust sealing assemblies with curved slotted partings are used obtaining an excellent and reliable sealing purpose.The end face of the rotor is sealed by end contact sealing with nor oil-lubrication and is seals well and is wear-resistant and durable.   Main driving system:The part is made up with main motor, reducer, connecting gears. It realizes odd-speed rotation of the rotors with running face one other.   Pneumatic control system:Pneumatic control system is controlled by XG order. The bi-directional air cylinder makes the ram up or down. In case the over load occurs in the mixing chamber, the top ram can be raised automatically or manually if necessary, so as to protect motor from overload.   Electric control system:Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.   2.RELATED PRODUCTS:Lab Rubber two roll mill.   3 . COMPANY INFORMATION    3-1 OULI COMPANY   QINGDAO OULI MACHINE CO., LTD Established in 1997 year, Located in qingdao city north of China. With more than 25 years development, OULI MACHINE more professional enterprise in design, Research and manufacturing rubber and plastic machines.   OULI MACHINE main products: rubber banbury kneader mixer, two roll mixing mill, rubber calender, batch off cooling, rubber vulcanizing press, rubber extruder, tyre recycling line, and reclaimed rubber machines.   OULI MACHINE company exported more than 100 countries in past 25 years, with CE, ISO and SGS certificates approved, And rich experience on guide machines' installation and maintenance after service.    4. OULI CERTIFICATIONOuli 3L Laboratory Internal Mixer,Lab Rubber Mixer.  QINGDAO OULI MACHINE CO.,LTD,RUBBER MACHINE MANUFACTURER SINCE 1997 ./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
