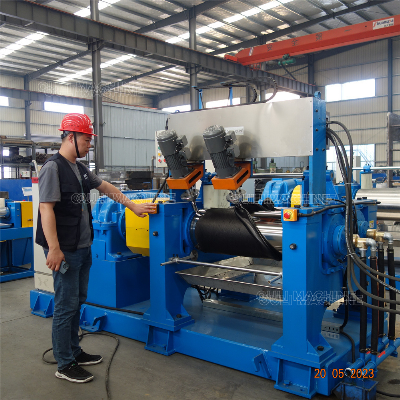

Energy Saving Stock Blender Rubber Mixing Mill, Two Roll Mill Machine

Energy Saving Stock Blender Rubber Mixing Mill, Two Roll Mill Machine   Product Description1. PRODUCT INTRODUCTION for Qingdao Laboratory Two Roll Open Mixing Mill/6 inch Lab rubber machine1-1. Basic introduction for Qingdao Laboratory Two Roll Open Mixing Mill/6 inch Lab rubber machineThe open mixing mill is a new type mixing mill with main motor being under the double rollers and reducer being installed into the right frame,so that the machine occupies less space with compact structure and it is very easy to install,operate and move.1. For the convenience of maintenance and installation and reliable operation, the principal and auxiliary machine adopt wholly cast steel seat mixing.2. Oil seal device is set in roll bearings and oil circuit lubrication adopts manual dry oil cup in to keep the lubrication well, operation convenient and environment clean.3. All drive gears are made from cast steel, and of such advantages as high strength material, stable running, high wearability and long working life, etc.4. Equipped with emergency brake equipment. When emergency accidents occur, it will brake automatically with reliability and safety.5. In order to save labor and operate conveniently, roll gap adopts worm wheel and worm adjustment. 1-2. Features Of Qingdao Laboratory Two Roll Open Mixing Mill/6 inch Lab rubber machine1. Rolls: chilled alloy cast iron rolls with surface hardness 68~72hs. the rolls are mirror finished & polished, duly grinding and are hollowed for cooling or heating.2. Roll clearance adjusting unit: nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.3. Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete up to supply pipeterminal.4. Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.5. Lubrication: full automatic grease lubrication pump for anti friction roller bearings fitted in dust sealed housing.6. Stand frame & apron: heavy duty steel casting.7. Gearbox: hard-tooth reduction gearbox, GUOMAO brand.8. Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately machined on which whole machine with gearbox and motor are fitted.9. Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload protection relay, 3 phase indicator and emergency stop switch.FOR MORE INFORMATION : oulimachine.en.made-in-china.com    Product Parameters1-3. Technical Parameter of Qingdao Laboratory Two Roll Open Mixing Mill/6 inch Lab rubber machine     Parameter/modelX(S)K-160X(S)K-200X(S)K-250X(S)K-300X(S)K-360Roll size (mm)Φ160×320Φ200×400Φ250×620Φ300×750Φ360×900Front roll speed (m/min) 7.49.612.515.118.1Roll speed ratio1:1351.31:1.251:1.251:1.25Nip adjust range (mm)0-60-60-100-100-10Capacity (kg/batch) 410152030Motor power (KW)5.57.518.52230Weight (KG)9562700350045006500 Parameter/modelX(S)K-400X(S)K-450X(S)K-560X(S)K-610X(S)K-660Roll size (mm)Φ400×1000Φ450×1200Φ560x1530Φ610×1830Φ660×2130Front roll speed (m/min) 19.821.128.128.429.8Roll speed ratio1:1.271:1.271:1.251:1.181:1.09Nip adjust range (mm)0-100-100-150.5-250.5-25Capacity (kg/batch) 355590150210Motor power (KW)37/4555110160250Weight (kg)8000120002000027000430001-4. Configuration of Qingdao Laboratory Two Roll Open Mixing Mill/6 inch Lab rubber machine1. Rolls: Chilled Alloy Cast Iron rolls with surface hardness 68~72HS. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling or heating.2. Roll Clearance Adjusting Unit: Nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.3. Roll Cooling: Universal Rotary joints with inner Spray pipes with Hoses and Headers. Piping is complete up to supply pipe terminal.4. Journal Bearing Housing: Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.5. Lubrication: Full Automatic Grease lubrication pump for Anti Friction Roller Bearings fitted in dust sealed housing.    6. Stand Frame & Apron: Heavy Duty Steel Casting.7. Gearbox: Hard-tooth reduction gearbox, GuoMao brand.8. Base Frame: Common base frame heavy duty, Steel channel and MS plate fabricated accurately machined on which whole machine with Gearbox and motor are fitted.9. Electric Panel: Star Delta Electric operating panel with Auto Reversing, Voltmeter, Ampere, Overload protection relay, 3 Phase Indicator and Emergency Stop Switch.Detailed Photos1-5. Sample pictures of Qingdao Laboratory Two Roll Open Mixing Mill/6 inch Lab rubber machine  Company Profile2.  COMPANY INFORMATION---QINGDAO OULI MACHINE CO., LTDEstablished in 1997, Qingdao Ouli Machine Co., Ltd. was located in Huangdao District, the west coast of Qingdao city, Shandong province, China.We are specialized in rubber machinery designing,manufacturing and maintenance work.OULI main products:1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter2. Rubber vu
